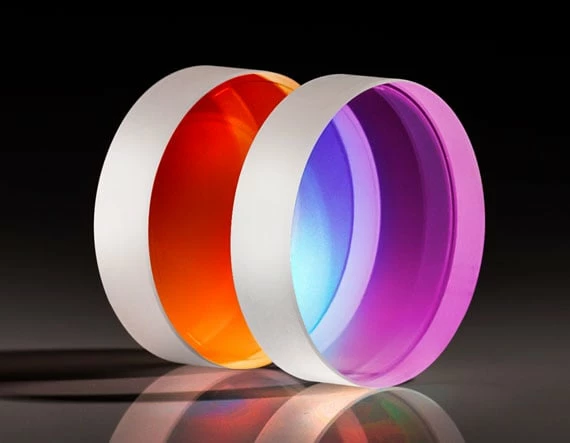

TECHSPEC® 2µm Laser Mirrors are designed for use with Holmium (2100nm) and Thulium (1940nm) doped laser systems. These mirrors are ideal for medical, industrial, and metrology application spaces. The 2 micron wavelength regime is useful for surgical procedures as it can target discrete depth levels of tissue beneath the skin’s surface. TECHSPEC® 2µm Laser Mirrors feature guaranteed laser damage thresholds >10 J/cm2 and >99% reflectivity at 2 microns.
Note: For more information on 2µm laser source applications, please see the Characteristics of 2µm Lasers.
- Laser Damage Threshold >10 J/cm2 @ 2µm, 10ns, 10Hz
- Designed for Holmium and Thulium Laser Sources
- λ/7 Surface Accuracy
| Surface Quality | 40-20 |
|---|---|
| Surface Flatness (P-V) | λ/7 |
| Substrate | Fused Silica (Corning 7980) |
| Angle of Incidence (°) | 45 |
| Thickness (mm) | 6.35 ±0.2 |
| Design Wavelength DWL (nm) | 2000 |
| Coating | Laser Mirror (1900-2200nm) |
| Coating Type | Dielectric |
| Wavelength Range (nm) | 1900 – 2200 |
| Parallelism (arcmin) | <3 |
| Coating Specification | Rs >99.9% @ 1900 – 2200nm Rp >99.6% @ 1940 – 2100nm |
| Reflectivity (Rp%) | 99.9 |
| Reflectivity (Rs%) | 99.6 |
| Reflection at DWL (%) | 99.6 |
| Back Surface | Compensating Coating |
| Clear Aperture (%) | 90 |
| Damage Threshold, By Design | >10 J/cm2 @ 2000nm, 10ns, 10Hz |
