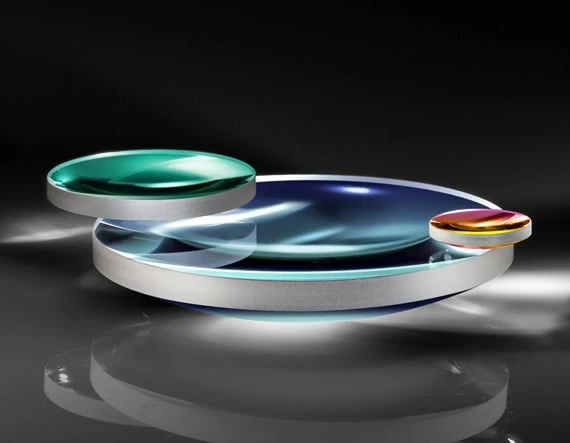

980nm Laser Line Coated Plano-Convex (PCX) Lenses
Original price was: $21.95.$15.37Current price is: $15.37.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Our standard TECHSPEC® Plano-Convex lenses are available in a variety of laser line V-Coat AR coating options. Designed for maximum throughput at the specified laser wavelength, these lenses are ideal for applications utilizing low power HeNe, Diode, and Nd:YAG laser sources. With a maximum reflection of <0.25% per surface at the design wavelength, the lenses will provide superior transmission in applications utilizing multiple optical components.>
- <0.25% Reflection at 980nm
- BBAR Coating Options Also Available: MgF2, VIS 0°, VIS-NIR, NIR I, NIR II
- 405nm, 532nm, 633nm, 785nm, 980nm, 1064nm, 1310nm, and 1550nm V-Coated Options Offered
| Coating | Laser V-Coat (980nm) |
|---|---|
| Coating Specification | Rabs <0.25% @ 980nm |
| Surface Quality | 40-20 |
| Power (P-V) @ 632.8nm | 1.5λ |
| Irregularity (P-V) @ 632.8nm | λ/4 |
| Focal Length Tolerance (%) | ±1 |
| Centering (arcmin) | |
| Design Wavelength DWL (nm) | 980 |
| Bevel | Protective bevel as needed |
| Damage Threshold, By Design | 5 J/cm2 @ 980nm, 10ns |
