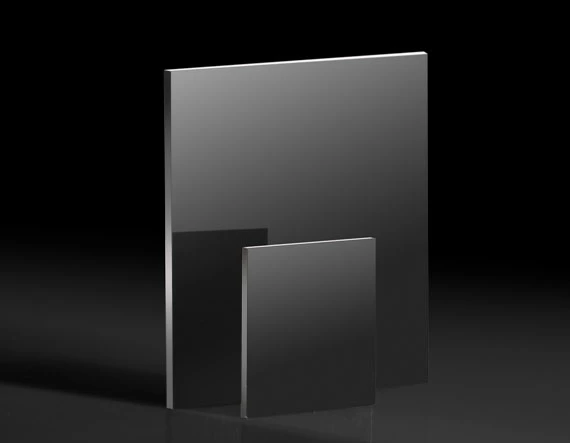

Broadband Polarizing Plate Beamsplitters
Original price was: $168.00.$98.99Current price is: $98.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Broadband Polarizing Plate Beamsplitters consist of a thin layer of aluminum MicroWires adhered to a glass window. These beamsplitters are an alternative and economical substitute for ruled or holographic wire grid polarizers. Providing exceptional image contrast and uniformity, these beamsplitters are ideal for applications requiring large angular apertures and high throughput.
Note: MicroWires are very fragile. Handle these beamsplitters with care.
If the operating temperature will exceed 100°C, turn the MicroWires surface away from the input beam for optimum performance. At temperatures below 100°C, the MicroWires can be oriented towards the input beam.
- Wire Grid Technology
- Reflects S-Polarized Light, Transmits P-Polarized Light
- Ideal for High Temperature Environments
| Angle of Incidence (°) | 45 ±15 |
|---|---|
| Substrate | Corning Eagle XG |
| Operating Temperature (°C) | -40 to +200 |
| Surface Quality | 80-50 |
| Thickness (mm) | 0.70 |
| Thickness Tolerance (mm) | ±0.07 |
| Dimensional Tolerance (mm) | ±0.2 |
| Construction | Wire Grid |
| Thermal Expansion | 31.7 x 10-7/°C |
| Coating Specification | Surface 2: Rabs <2.0% @ 420 – 670nm |
| Wavelength Range (nm) | 420 – 700 |
| Transmission Axis Tolerance (°) | ±1 |
