Compact Kinematic Mounts
Original price was: $96.00.$67.20Current price is: $67.20.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

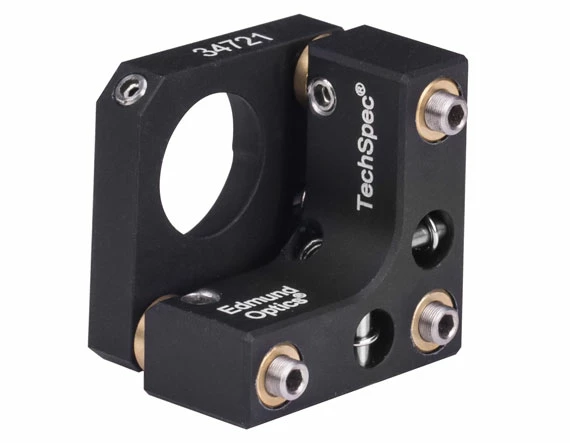

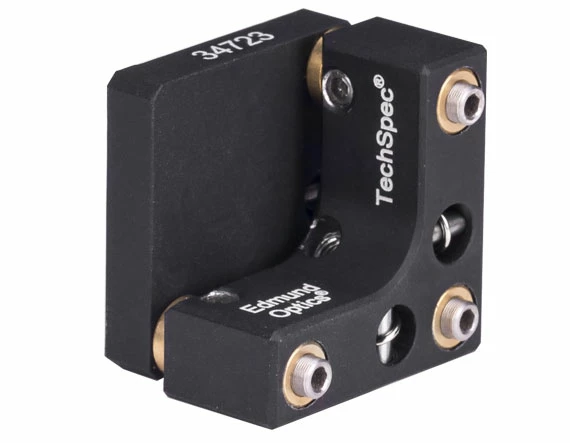

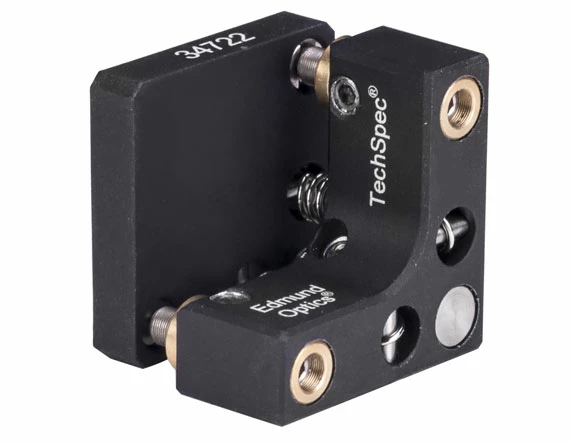

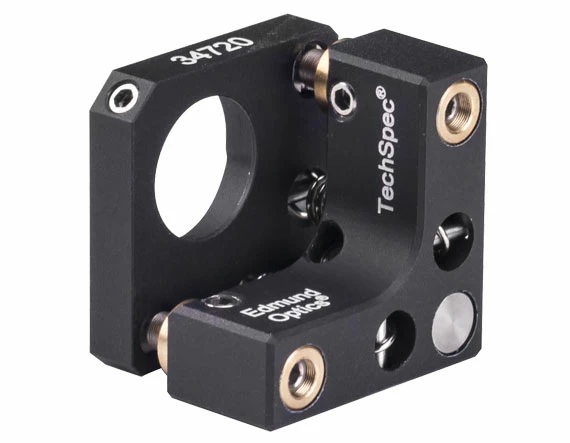

Our TECHSPEC® Compact Kinematics are designed to retain the performance of a larger kinematic for integration into space sensitive applications. These kinematics feature completely reseding adjustment screws for integration into OEM applications. TECHSPEC Compact Kinematic Mounts have two front plate models for utilization of set screw or adhesive optic securing. Stainless steel inserts are also used to ensure quality and stability. These kinematic mounts, in conjunction with our TECHSPEC Laser Mirrors, are ideal for reliable integration into laser machining, cinema or life science applications.
- M3 x 0.2 Fine Adjustment Screw Threads
- <25mm Overall Profile
- Lockable for Improved Stability
| Thickness (mm) | 19.60 |
|---|---|
| Construction | Aluminum Plates, Stainless Steel Screws, and Brass Thread Bushings |
| Fine Tilt Angle (°) | ±5 |
| Fine Tip Angle (°) | ±5 |
| Adjustment Screw Pitch (mm) | 0.2 |
| Compatible Post | M4 x 0.7 |
| Centerline Height (mm) | 15.0 |
| Plate Dimensions (mm) | 22.5 x 22.5 |
| Thickness of Front Plate to Back Plate (mm) | 19.6 |
| Pointing Stability (μrad) | 1.3 |
