Compact Motorized Linear Stages
Original price was: $340.00.$96.99Current price is: $96.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

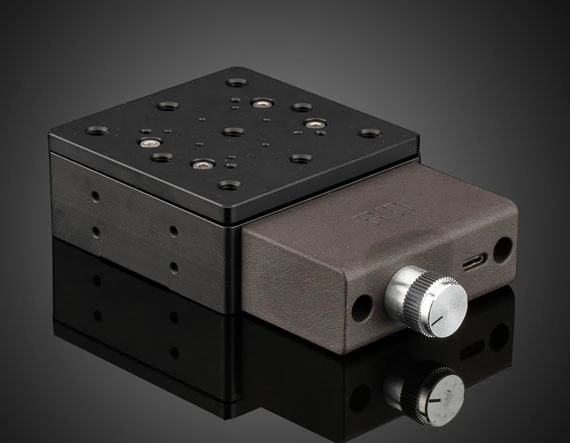

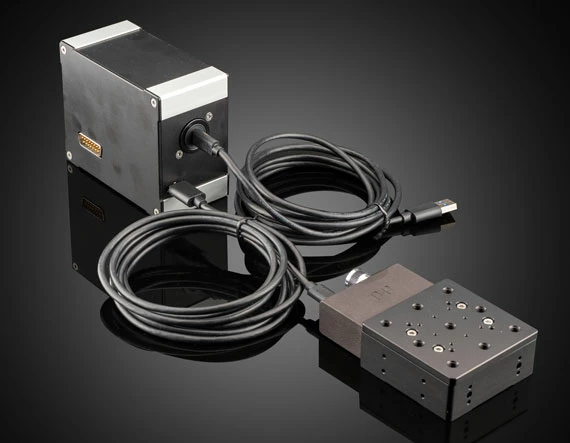

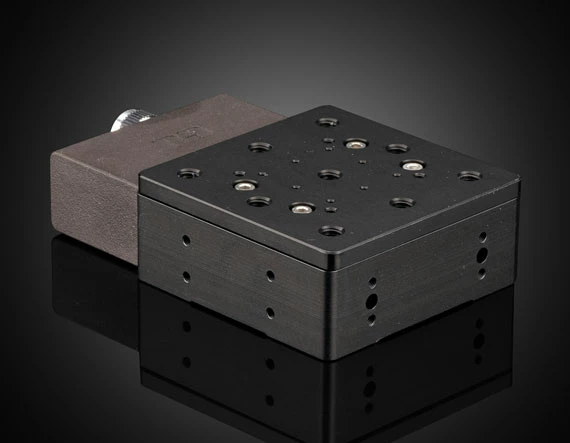

Compact Motorized Linear Stages are a cost-effective solution for motorized linear adjustment within an optical system. These stages feature an anodized aluminum stage platform for precision mounting, with a Selective Laser Sintering (SLS) 3D printed plastic housing for a lightweight but durable construction. The compact overall footprint maximizes space efficiency to add motorization to space constrained systems. Compact Motorized Linear Stages share the same hole patterns as our TECHSPEC stages, making them an ideal lab bench component for motorized system building. Requires a Controller, #23-931, which can be easily connected via an included 1m USB-C to USB-A cable.
- Compact Footprint and Economic Price Point
- Light-weight Housing with Durable Stage Platform
- Compatible with TECHSPEC Stages
| Type of Movement | Linear (X) |
|---|---|
| Operating Temperature (°C) | 10-40 |
| Maximum Operating Current (mA) | 600 |
| Computer Interface | USB-C |
| Weight (kg) | 0.615 |
| Type of Motor | Stepper Motor |
| Speed (mm/s) | 40 |
| Resolution (μm) | 5 |
| Repeatability (μm) | 3 |
| Parallelism (μm) | 22 |
| Note | Two integrated, adjustable limit switchesController Required: #23-931 |
| Guide System | Ball Bearing |
| Load Capacity (kg) | 1 |
| Height (mm) | 33 |
| Control Interface | USB-C |
| Construction | Aluminum, 3D Printed Plastic |
| Backlash (μm) | 50 |
| Accuracy (μm) | 5 |
| Travel (mm) | 15 |
| Stage Size (mm) | 70 x 107 |
| Type of Drive | Lead Screw |
| Min. Incremental Movement (μm) | 1.25 |
