Compact Motorized Rotation Stages
Original price was: $381.00.$97.99Current price is: $97.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

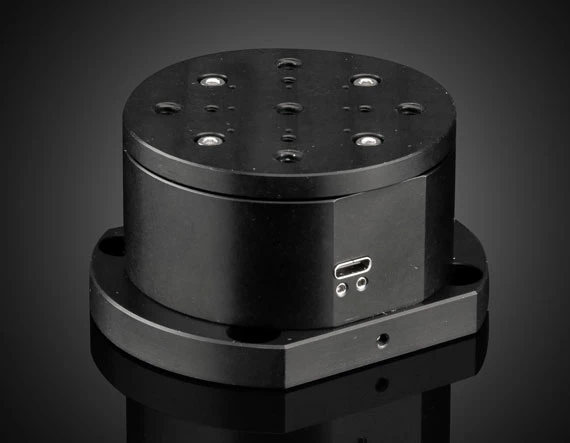

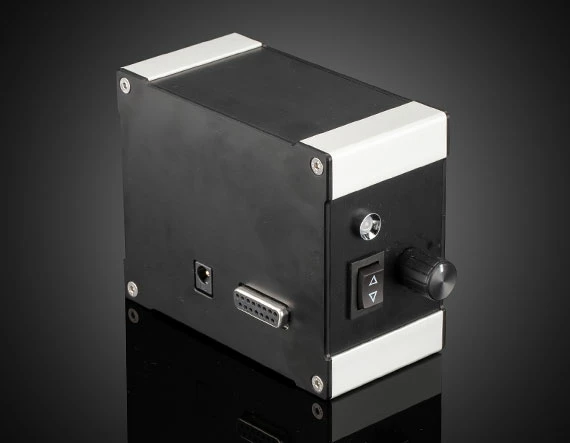

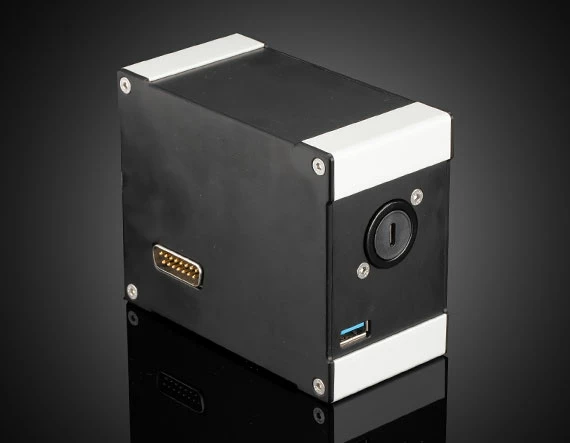

Compact Motorized Rotation Stages are a cost-effective solution for motorized rotation adjustment within an optical system. These stages feature an anodized aluminum stage platform for precision mounting, with a preinstalled breadboard mounting plate. The compact overall footprint maximizes space efficiency to add motorization to space constrained systems. Compact Motorized Rotation Stages share the same hole patterns as our TECHSPEC stages, making them an ideal lab bench component for motorized system building. Requires a Controller, #23-931, which can be easily connected via an included 1m USB-C to USB-A cable.
- Compact Footprint and Economic Price Point
- Light-weight Housing with Durable Stage Platform
- Compatible with TECHSPEC Stages
| Type of Movement | Rotary |
|---|---|
| Repeatability (°) | 0.03 |
| Parallelism (°) | 0.0083 |
| Table Diameter (mm) | 70 |
| Maximum Operating Current (mA) | 500 |
| Computer Interface | USB-C |
| Weight (kg) | 0.25 |
| Type of Motor | Stepper Motor |
| Speed (°/s) | 240 |
| Resolution (μm) | 0.02° |
| Operating Temperature (°C) | 10-40 |
| Guide System | Ball Bearing |
| Note | Controller Required: #23-931 |
| Load Capacity (kg) | 0.5 |
| Height (mm) | 44.7 |
| Construction | Aluminum, 3D Printed Plastic |
| Backlash (°) | 0.2 |
| Accuracy (°) | 0.03 |
| Travel (mm) | 360 |
| Type of Drive | Gear Transmission |
| Min. Incremental Movement (°) | 0.02 |
