Dichroic Laser Beam Combiners
Original price was: $190.00.$95.99Current price is: $95.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

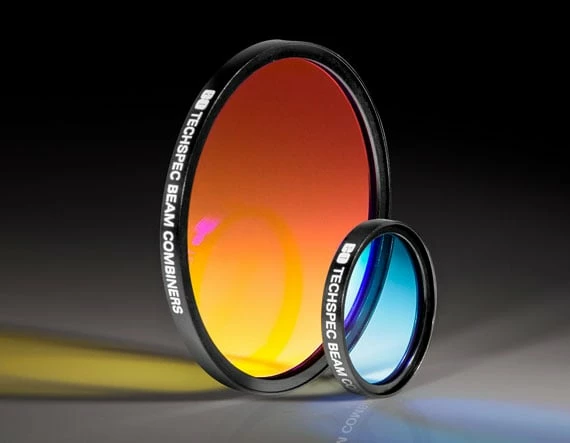

TECHSPEC® Dichroic Laser Beam Combiners are designed to efficiently combine or separate multiple laser beams at a 45° angle of incidence. TECHSPEC Dichroic Laser Beam Combiners feature greater than 98% reflection and greater than 95% transmission at popular laser lines, yielding exceptionally low loss. Constructed from low autofluorescence substrates with hard sputtered coatings, TECHSPEC Dichroic Laser Beam Combiners are ideal for multi-laser fluorescence imaging and measurement applications, including laser microscopy and flow cytometry.
Note: These filters are optimized for high spectral performance rather than high Laser Induced Damage Thresholds (LIDT). A typical LIDT for these filters is 1 J/cm2 @ 532nm, 10ns. Please contact us if you require a filter with a higher LIDT value.
- Polarization Insensitive
- Hard Sputtered Coating
- Multiple Sizes Available
| Angle of Incidence (°) | 45 |
|---|---|
| Substrate | Fused Silica (Corning 7980) |
| Coating | Hard Coated |
| Reflection (%) | >98 |
| Surface Quality | 60-40 |
| Thickness Tolerance (mm) | ±0.1 |
| Transmission (%) | >95 |
| Construction | Mounted in Black Anodized Ring |
| Transmitted Wavefront, RMS | <1λ |
| Environmental Durability | Humidity per MIL-STD-810H, Section 507.6Temperature per MIL-STD-810H, Section 501.7 and 502.7 |
| Physical Durability | Adhesion per MIL-PRF-13830B, Section C.4.5.12Moderate abrasion per MIL-PRF-13830B, Section C.4.5.11Cleaning per MIL-C-48497A Section 4.5.4.2 |
| Mount Thickness (mm) | 3.5 |
