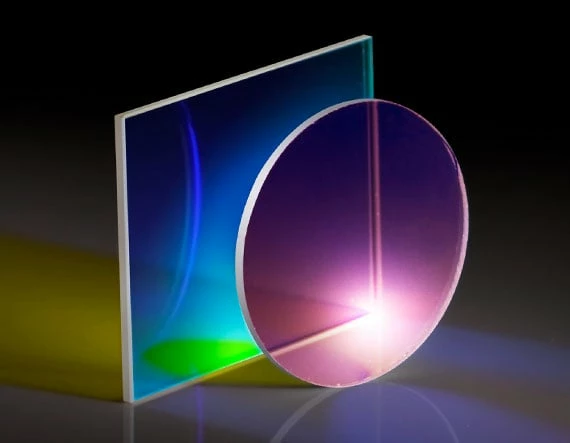

Dichroic Shortpass Filters
Original price was: $119.00.$83.30Current price is: $83.30.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Our TECHSPEC® Dichroic Shortpass Filters are designed for a 45° angle of incidence. The rejected light is reflected at 90°, making these filters ideal for use in fluorescence applications or as spectral beamsplitters. The filters feature low polarization dependence, broad spectral ranges, and a precision fused silica substrate.
- Sharp Cut-Off Wavelength
- Broad Transmission and Reflection Ranges
- Available in 4 Common Sizes
| Angle of Incidence (°) | 45 |
|---|---|
| Dimensional Tolerance (mm) | +0.0/-0.2 |
| Physical Durability | Adhesion per MIL-PRF-13830B, Section C.4.5.12Moderate abrasion per MIL-PRF-13830B, Section C.4.5.11Cleaning per MIL-C-48497A Section 4.5.4.2 |
| Environmental Durability | Humidity per MIL-STD-810H, Section 507.6Temperature per MIL-STD-810H, Section 501.7 and 502.7 |
| P-Polarization Reflection (%) | >95 |
| S-Polarization Reflection (%) | >95 |
| Cut-Off Tolerance (%) | ±2 |
| Transmitted Wavefront, RMS | λ/4 |
| Transmission (%) | >85 Average Polarization |
| Substrate | Fused Silica (Corning 7980) |
| Thickness Tolerance (mm) | ±0.1 |
| Thickness (mm) | 1.05 |
| Surface Quality | 60-40 |
| S-Polarization Transmission (%) | >80 |
| Reflection (%) | >97 Average Polarization |
| P-Polarization Transmission (%) | >80 |
| Coating | Hard Coated |
| Coating Specification | Surface 1: Hard Dielectric SputteredSurface 2: MgF2 |
