Dual-Wavelength Quartz Waveplates
Original price was: $345.00.$98.99Current price is: $98.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

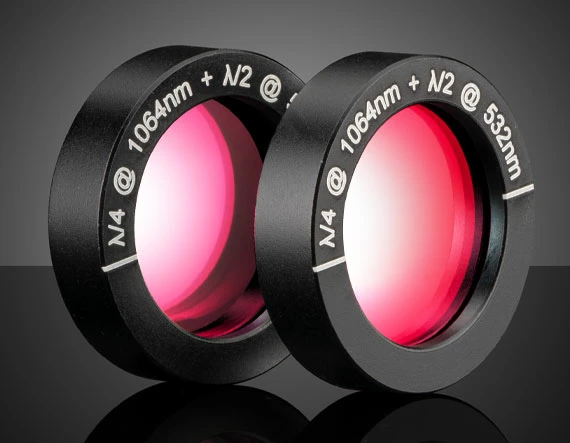

Dual-Wavelength Quartz Waveplates are made with high-quality crystalline quartz substrates and offer λ/4 retardance at one wavelength and λ/2 retardance at a second wavelength. Featuring designed wavelengths for Nd:YAG (532 and 1064nm), Yb:YAG (515 and 1030nm), and Ti:Sapphire (400 and 800nm), these waveplates boast high laser damage threshold (LDT) and anti-reflective (AR) coatings for high powered laser applications. Dual-Wavelength Quartz Waveplates are mounted in a 25.4mm black anodized aluminum ring with an 18mm clear aperture. These waveplates are ideal for laser separation applications requiring increased conversion efficiency of dual-wavelength sources or Second-Harmonic Generation (SHG) lasers through management of polarization.
- λ/4 and λ/2 Retardance for Harmonic Separation
- Designed for Nd:YAG, Yb:YAG, or Ti:Sapphire Lasers
- Multiple Order Designs
| Clear Aperture CA (mm) | 18.0 |
|---|---|
| Diameter (mm) | 25.40 +0/-0.2 |
| Substrate | Crystalline Quartz |
| Surface Quality | 20-10 |
| Dimensional Tolerance (mm) | +0/-0.2 |
| Transmitted Wavefront, P-V | |
| Parallelism (arcsec) | |
| Mount Thickness (mm) | 6 ±0.2 |
| Damage Threshold, By Design | >5 J/cm2 @ 1064 nm; 10 ns; 10 Hz |
| Retardance Order | Multiple order |
