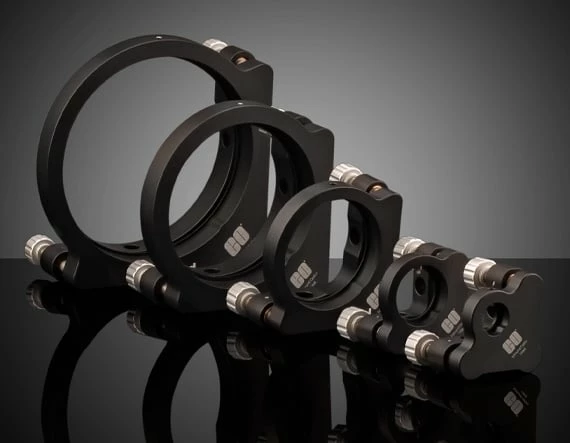

E-Series Kinematic Optical Mirror Mounts
Original price was: $40.00.$28.00Current price is: $28.00.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
E-Series Kinematic Optical Mirror Mounts offer many high value features essential for applications in R&D, prototyping, and system integration. The mounts are offered with 2 screws for tip and tilt optical adjustment and alignment (±3.5°). The M6 x 0.25 (101.6 TPI) adjustment screws provide smooth movement and can be driven by hand or by Allen key (2mm key size). The adjustment screw knobs are removable to create a more compact form factor. E-Series Kinematic Optical Mirror Mounts feature mounting holes with both a counterbore designed to accommodate M4 or 8-32 mounting hardware, and M6 x 1.0 internal threads for increased mounting versatility and direct compatibility to TECHSPEC® Stainless Steel Mounting Posts and Pedestal Posts.
- Essential Mount for Experiments and OEM System
- Economic Price
- 0.5”- 4.0” Dia. Versions Available
- M6 x 0.25 (101.6 TPI) Adjustment Screws
| Type of Optics | Circular |
|---|---|
| Number of Adjustment Screws | 2 |
| Construction | Aluminum Plates, Stainless Steel Screws, and Brass Thread Bushings |
| Fine Tilt Angle (°) | ±3.5 |
| Fine Tip Angle (°) | ±3.5 |
| Adjustment Screw Pitch (mm) | 0.25 |
| Compatible Post | M6 x 1.0, M4 x 0.7, 8-32 |
