Fluorescence Bandpass Filters
Original price was: $247.00.$98.99Current price is: $98.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

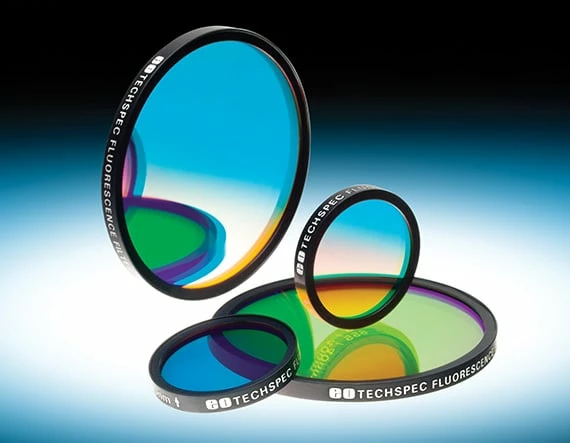

Our TECHSPEC® Fluorescence Bandpass Filters are perfectly matched to common fluorophores used in fluorescence imaging applications. Excitation Filters and Emission Filters are available featuring >93% transmission and >OD 6 blocking outside of the passband. These filters are also ideal components in spectroscopy and clinical chemistry applications, as well as biotech instruments such as DNA sequencers and polymerase chain reaction (PCR) testing platforms. Each filter is hard sputtered coated and mounted in a black anodized ring.
For a complete list of compatible fluorophores for each Excitation or Emission Filter, view Fluorophores and Optical Filters for Fluorescence Microscopy.
- Common Wavelengths for Popular Fluorophores
- Excitation Filters and Emission Filters Available
- >93% Transmission
- >OD 6 Blocking, <3% from Edge of Bandwidth
- Fluorescence Filter Sets and Pre-Mounted Fluorescence Filter Cube Sets Also Available
| Angle of Incidence (°) | 0 ±5 |
|---|---|
| Optical Density OD (Average) | ≥6.0 |
| Coating | Hard Coated |
| Surface Quality | 60-40 |
| Thickness Tolerance (mm) | ±0.1 |
| Construction | Mounted in Black Anodized Ring |
| Transmitted Wavefront, RMS | λ/4 (prior to coating) |
| Environmental Durability | Humidity per MIL-STD-810H, Section 507.6Temperature per MIL-STD-810H, Section 501.7 and 502.7 |
| Physical Durability | Adhesion per MIL-PRF-13830B, Section C.4.5.12Moderate abrasion per MIL-PRF-13830B, Section C.4.5.11Cleaning per MIL-C-48497A Section 4.5.4.2 |
| Mount Thickness (mm) | 3.5 ±0.1 |
| Substrate Thickness (mm) | 2.00 ±0.25 |
