Hard Coated OD 4.0 25nm Bandpass Filters
Original price was: $160.00.$99.99Current price is: $99.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

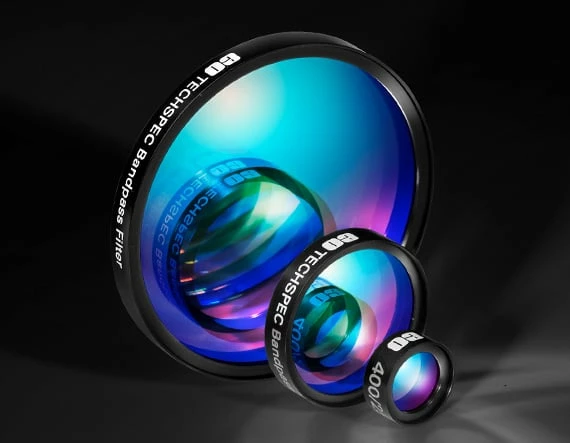

TECHSPEC® Hard Coated OD 4.0 25nm Bandpass Filters are designed to be a midrange alternative to broadband or narrowband filters. TECHSPEC Hard Coated OD 4.0 25nm Bandpass Filters are ideal for single photon microscopy, or for preventing photobleaching of live samples or fluorophores in a range of life science applications. These filters can also be used to eliminate unwanted background noise while enhancing the signal to noise ratio in imaging or machine vision applications.
Note: These filters are optimized for high spectral performance rather than high Laser Induced Damage Thresholds (LIDT). A typical LIDT for these filters is 1 J/cm2 @ 532nm, 10ns. Please contact us if you require a filter with a higher LIDT value.
- Ideal for Life Science Instrumentation
- High Transmission, Deep Blocking
- Used to Prevent Photobleaching in Microscopy Applications
- Hard Coated OD 4.0 5nm, 10nm and 50nm Bandpass Filters also Available
| Angle of Incidence (°) | 0 |
|---|---|
| Bandwidth (nm) | 20 |
| Optical Density OD (Average) | ≥4.0 |
| Center Wavelength CWL Tolerance (nm) | ±3 |
| Full Width-Half Max FWHM (nm) | 25.00 ±3 |
| Full Width-Half Max FWHM Tolerance (nm) | ±3 |
| Substrate | Optical Glass |
| Coating | Hard Coated |
| Surface Quality | 80-50 |
| Construction | Mounted in Black Anodized Ring |
| Environmental Durability | Humidity per MIL-STD-810H, Section 507.6Temperature per MIL-STD-810H, Section 501.7 and 502.7 |
| Physical Durability | Adhesion per MIL-PRF-13830B, Section C.4.5.12Moderate abrasion per MIL-PRF-13830B, Section C.4.5.11Cleaning per MIL-C-48497A Section 4.5.4.2 |
| Mount Thickness (mm) | 5.0 ±0.1 |
| Substrate Thickness (mm) | 3.5 ±0.5 |
