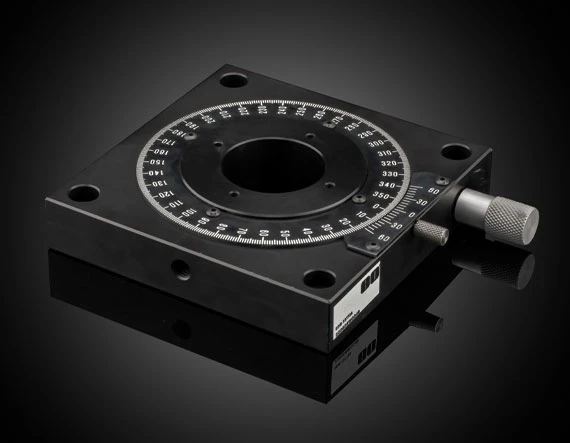

Heavy Load Capacity Rotary Positioning Stages
Original price was: $310.00.$97.99Current price is: $97.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Heavy Load Capacity Rotary Positioning Stages provide smooth, continuous adjustment over a full 360° travel range. A precision worm gear drive allows exact angular positioning of the rotation stage, and a position locking knob allows the stage to be positively locked in place. This heavy duty rotation stage offers a 2.75″ diameter stage with a calibrated dial and ±60 arcminute Vernier scale. Heavy Load Capacity Rotary Positioning Stages can be combined with metric and English stages that have mounting holes on 4.0″ centers (5″ ball stages) for multi-axis set ups. These stages have a load capacity of 25lb/11.3kg for heavy duty applications.
- Normal Load Capacity of 25lb (11.3kg) for heavy duty applications
- Precision Worm Gear Drive
- Compatible with Metric and English 5″ Ball Stages
| Type of Movement | Rotary |
|---|---|
| Type of Drive | Worm Gear |
| Stage Size (mm) | 120.7 x 120.7 |
| Travel (°) | 360 |
| Construction | Aluminum Top and Base; Steel/bronze Worm Gear Drive |
| Gear Drive Ratio | 120:1 |
| Increments (arcmin) | 6 (Vernier) |
