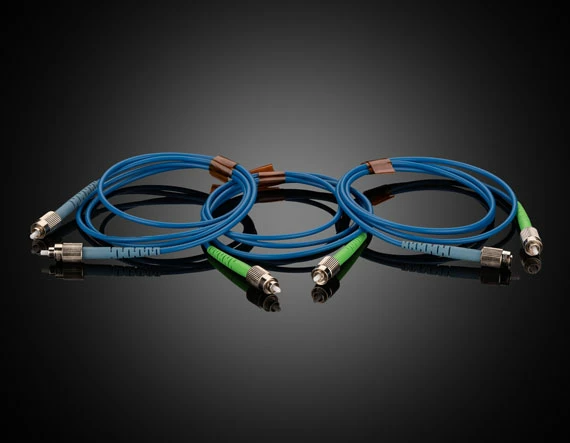

High Extinction Ratio Polarization Maintaining Fiber Optic Patchcords
Original price was: $231.00.$97.99Current price is: $97.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
High Extinction Ratio Polarization Maintaining Fiber Optic Patchcords are available with FC/PC or FC/APC terminated connectors. Hybrid terminated connectors enable users to adapt FC/PC and FC/APC patchcords for compatibility with existing fiber assemblies. When used at the fiber specific alignment wavelength, these fiber patchcords provide extinction ratios between 30 – 33 dB to better maintain input polarization. High Extinction Ratio Polarization Maintaining Fiber Optic Patchcords are ideal for applications including telecommunications, interferometry, and quantum key distribution. Each connector is engraved with the fiber type for easy integration and identification.
- FC/PC, FC/APC, or Hybrid Terminated Connectors
- Patchcords for Wavelengths from 970 – 1625nm
- Extinction Ratios up to 33 dB
- Ideal for Use with 980, 1064, 1310, and 1550nm IR Lasers
| Length (m) | 1 +0.1/-0.0 |
|---|---|
| Operating Temperature (°C) | 0 to 70 |
| Storage Temperature (°C) | -45 to 85 |
| Jacket Material | Ø3 mm Blue PVC Furcation Tubing |
| Extinction Ratio | 30dB (Min) 33dB (Typ.) |
| Key Width | 2mm Narrow Key |
| Slow Axis Alignment | Aligned to Connector Key |
