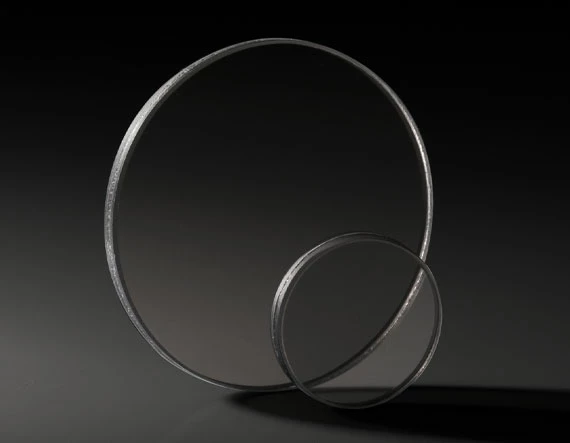

High Performance Glass Linear Polarizers
Original price was: $134.00.$93.80Current price is: $93.80.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
High Performance Glass Linear Polarizers offer a high extinction ratio, and are available in a range of sizes. A single polarizer transmits about 25% of randomly polarized incident light from 400 – 700nm. The glass substrate is anti-reflection (AR) coated to minimize loss of light due to reflection. These polarizers are ideal for a broad range of industrial and laboratory applications.
- 10,000:1 High Extinction Ratio for 400 – 700nm
- Polarization Axis is Reference Marked
- Anti-Reflection Coated to Minimize Reflection Loss
| Coating | AR: Ravg <0.5% @ 400 – 700nm |
|---|---|
| Extinction Ratio | 10,000:1 |
| Substrate | Polymer Film between B270 |
| Operating Temperature (°C) | -25 to +65 |
| Thickness (mm) | 2.00 |
| Thickness Tolerance (mm) | ±0.2 |
| Transmission (%) | 25 (for random polarization) |
| Transmission Tolerance (%) | ±2 |
| Parallelism (arcmin) | <4 |
| Dimensional Tolerance (mm) | +0.0/-0.2 |
| Construction | Dichroic Polarizing Film between Glass |
| Wavelength Range (nm) | 400 – 700 |
| Surface Flatness (P-V) | <1λ |
| Polarization Axis Mark (°) | ±2 |
