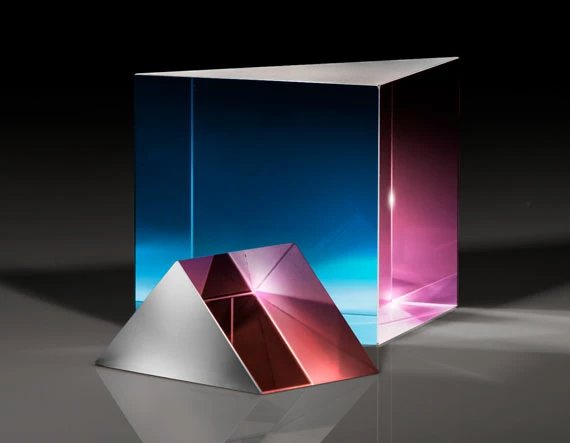

High Tolerance UV Fused Silica Right Angle Prisms
Original price was: $87.50.$61.25Current price is: $61.25.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in combination for image/beam displacement. TECHSPEC® High Tolerance UV Fused Silica Right Angle Prisms feature low arcsecond angle tolerance and and are made from precision UV fused silica for use in a variety of UV, Visible and NIR applications
- Ray Deviation of 90°
- Left Handed Image
- ±40 Arcseconds Angle Tolerance
- Additional Right Angle Prism Options Available
| Angle Tolerance (arcsec) | ±40 |
|---|---|
| Substrate | Fused Silica (Corning 7980) |
| Surface Quality | 20-10 |
| Dimensional Tolerance (mm) | +0.0/-0.1 |
| Bevel | Protective bevel as needed |
| Pyramid Tolerance (arcmin) | ±1 |
| Image Orientation | Left-Handed |
| Surface Flatness (P-V) | λ/10 |
