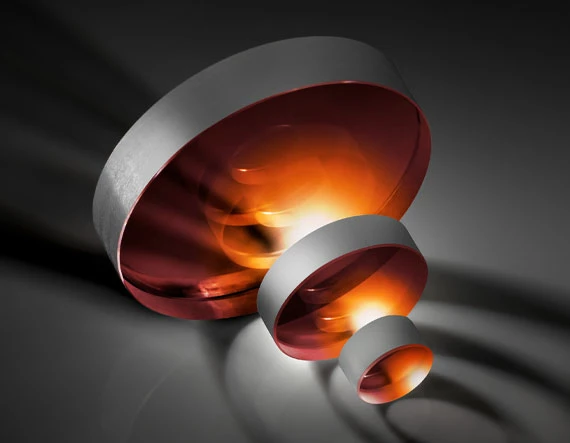

IBS Laser Line Windows
Original price was: $154.00.$99.99Current price is: $99.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® IBS Laser Line Windows feature an ion beam sputtering (IBS) anti-reflection coating that provides <0.1% reflectivity at their design wavelength with minimal losses due to absorption or scatter. The IBS coating process produces dense, homogeneous coating layers that are environmentally stable and insensitive to temperature and humidity changes, enabling these windows to be used in harsh environments. TECHSPEC IBS Laser Line Windows are available in standard imperial sizes with designs for the Nd:YAG laser wavelengths of 355nm, 532nm, and 1064nm. In-house manufacturing enables Edmund Optics to provide custom sizes and designs in the wavelength range 343nm to 1600nm.
Superpolished Optics for Minimized Scatter
Learn More
- IBS Coated for Minimal Absorption and Scatter
- <0.1% Reflectivity at Nd:YAG Laser Lines
- Certified Laser Damage Thresholds at Design Wavelength
| Angle of Incidence (°) | 0 |
|---|---|
| Surface Quality | 10-5 |
| Abbe Number (vd) | 67.8 |
| Poisson's Ratio | 0.16 |
| Index of Refraction nd | 1.458 |
| Density (g/cm3) | 2.20 |
| Coefficient of Thermal Expansion CTE (10-6/°C) | 0.52 (+5 to +35°C)0.57 (0 to +200°C)0.48 (-100 to +200°C) |
| Young's Modulus (GPa) | 73 |
| Surface Flatness (P-V) | λ/10 |
| Bevel | Protective as needed |
| Fused Silica Grade | 7980 0F |
| Substrate | Fused Silica (Corning 7980) |
| Parallelism (arcmin) | <3 |
| Thickness (mm) | 6.35 ±0.20 |
| Diameter (mm) | 25.40 +0.00/-0.10 |
| Clear Aperture CA (mm) | 22.86 |
| Edges | Fine Ground |
