Infrared (IR) Material Windows
Original price was: $27.00.$18.90Current price is: $18.90.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

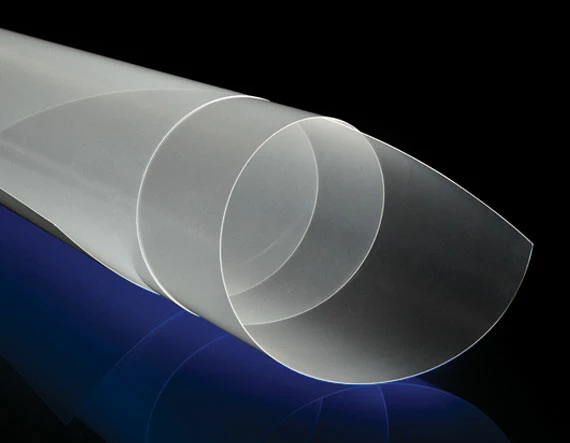

Infrared (IR) Material Windows are molded in an extremely thin and flexible 0.38mm thickness, milky white plastic. The thin design consistent across the window surface, large apertures, and minimal thermal expansion coupled with low absorption from 8 – 14μm make them ideal for a range of infrared applications.
- Excellent Optics for Infrared Detectors
- Minimal Absorption Loss from 8 – 14μm
- Easily Cut to Size
| Thickness (mm) | 0.38 |
|---|---|
| Thickness (inches) | 0.015 |
| Coating | Uncoated |
| Coefficient of Thermal Expansion CTE (10-6/°C) | 11 – 13 |
| Flexural Modulus (psi) | (100-260) x 103 |
| Index of Refraction nd | Visible (Sodium D Line): 1.52 8-14µm: 1.53 15µm+: 1.48 |
| Operating Temperature (°C) | 100 (Max.) |
| Shore Hardness | D60-70 |
| Substrate | Polymer Film |
| Wavelength Range (nm) | 8000 – 14000 |
| Young's Modulus (GPa) | 0.40 – 1.24 |
