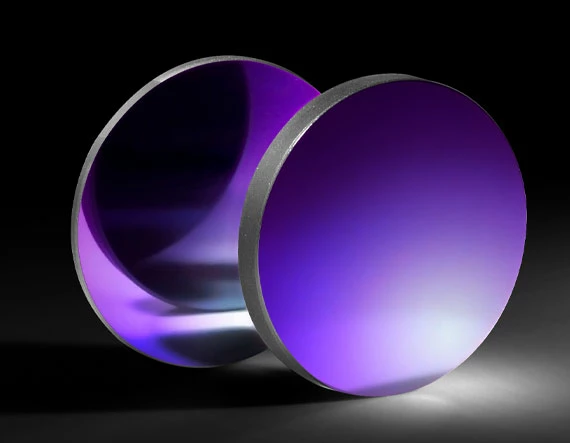

ISP Optics AMTIR-1 Windows
Original price was: $309.00.$96.99Current price is: $96.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
ISP Optics AMTIR-1 (Amorphous Material Transmitting Infrared Radiation) Windows are constructed from a chalcogenide material, Ge33As12Se55, and transmit infrared light from 750nm to 14μm. AMTIR-1 is water insoluble and has excellent chemical resistance to acids, enabling these windows to be used in harsh environments as protective windows. Compared to germanium windows, these windows have a lower index of refraction and do not experience thermal runaway, allowing for their use uncoated and in elevated temperatures up to 300°C. ISP Optics AMTIR-1 Windows are ideal for use in infrared imaging systems, non-contact temperature measurement systems, forward-looking infrared (FLIR) cameras, and low power infrared laser systems.
- Transmission from 750nm – 14μm
- Excellent Chemical Resistance to Acids
- Low Index of Refraction
| Bevel | Protective as needed |
|---|---|
| Parallelism (arcmin) | <3 |
| Young's Modulus (GPa) | 21.2 |
| Wavelength Range (nm) | 750 – 14000 |
| Surface Quality | 40-20 |
| Surface Flatness (P-V) | λ/10 @ 10.6μm |
| Substrate | AMTIR-1 (Ge33As12Se55) |
| Poisson's Ratio | 0.215 |
| Knoop Hardness (kg/mm2) | 170 |
| Clear Aperture (%) | 85 |
| Index of Refraction nd | 2.519 @ 3μm2.503 @ 8μm2.490 @ 12μm |
| Edges | Fine Ground |
| Density (g/cm3) | 4.43 |
| Coefficient of Thermal Expansion CTE (10-6/°C) | 12.6 |
| Coating | Uncoated |
| Diameter (mm) | 25.40 +0.00/-0.13 |
| Clear Aperture CA (mm) | 21.59 |
| Type of Window | Chalcogenide |
