ISP Optics Gold Coated Mirrors
Original price was: $150.00.$95.99Current price is: $95.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

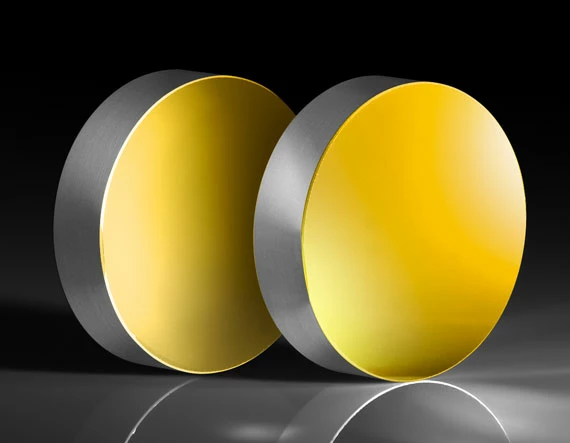

ISP Optics Gold Coated Mirrors feature a protected gold coating on a Pyrex® mirror substrate with an operating wavelength range of 0.7 – 12µm. Protected gold is the most efficient reflective coating over the entire Infrared (IR) wavelength range. In addition, Pyrex® is a low-expansion material, making it relatively insensitive to temperature changes. As such, ISP Optics Gold Coated Mirrors are ideal for a wide range of IR applications. A protective dielectric overcoat is deposited over the gold to protect the fragile coating from damage and to make cleaning and handling easier.
- Pyrex® Mirror Substrates
- Protected Gold Coating
- Ideal for LWIR Applications
| Surface Flatness (P-V) | λ/4 |
|---|---|
| Substrate | Pyrex |
| Back Surface | Fine Grind |
| Surface Quality | 40-20 |
| Coating Specification | Ravg ≥95% @ 3000 – 5000nm |
| Coating | Protected Gold (3000-5000nm) |
| Coating Type | Metal |
| Edges | Fine Grind |
| Thickness (mm) | 6.35 ±0.20 |
| Wavelength Range (nm) | 3000 – 5000 |
