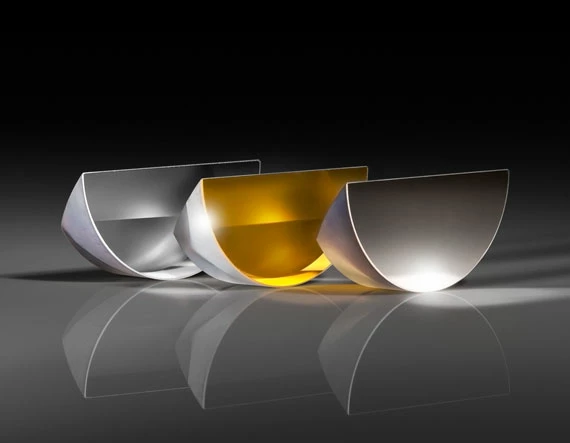

Knife-Edge Pickoff Mirrors
Original price was: $75.00.$52.50Current price is: $52.50.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Knife-Edge Pickoff Mirrors are designed to selectively reflect an individual beam from a group of tightly spaced beams, while minimizing the overall footprint of the application. These mirrors feature a sharp 45° bevel with a reflective coating that extends to the beveled edge on a precision Fused Silica substrate with λ/10 flatness to the bevel. Knife-Edge Pickoff Mirrors are ideal for applications that incorporate dispersion prisms and diffraction gratings. These mirrors are available in three metallic coating options with performance from the visible spectrum into the far IR.
- Designed to Separate Two Beams Propagating Closely Next to Each Other
- 45° Bevel
- Coating Aperture Up to the Knife-Edge
- Enhanced Aluminum, Protected Gold and Protected Silver Coating Options
| Diameter (mm) | 25.40 |
|---|---|
| Surface Flatness (P-V) | λ/10 |
| Substrate | Fused Silica (Corning 7980) |
| Back Surface | Fine Grind |
| Surface Quality | 20-10 |
| Dimensional Tolerance (mm) | +0.0/-0.20 |
| Coating Type | Metal |
| Bevel | Protective bevel as needed |
| Edges | Ground |
| Parallelism (arcmin) | 2 |
| Thickness (mm) | 6.35 |
| Thickness Tolerance (mm) | ±0.20 |
