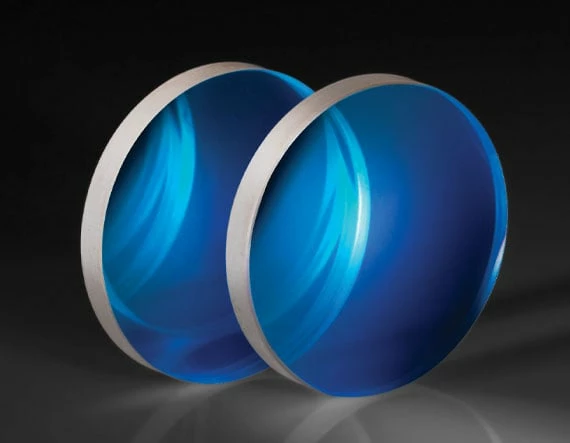

λ/10 Plate Beamsplitters
Original price was: $190.00.$95.99Current price is: $95.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® λ/10 Plate Beamsplitters are designed for use with a 45 degree angle of incidence and random polarization. With a featured 30 arcminute wedge, the effects of internal interference are minimized. Each beamsplitter also includes a multi-layer anti-reflection (AR) coating on the back-surface. TECHSPEC® λ/10 Plate Beamsplitters have been optimized for the visible spectrum and are offered in a variety of splitting ratios. These beamsplitters are ideal for laser applications due to the wedged design and high quality Fused Silica substrate.
- 30 Arcminute Wedge to Minimize Internal Interference
- Wide Range of Splitting Ratios
- Fused Silica Substrate
| Construction | Plate |
|---|---|
| Dimensional Tolerance (mm) | ±0.10 |
| Edges | Protective Bevel as needed |
| Substrate | Fused Silica (Corning 7980) |
| Surface Flatness (P-V) | λ/10 |
| Surface Quality | 20-10 |
| Thickness (mm) | 3.00 |
| Thickness Tolerance (mm) | ±0.20 |
| Wavelength Range (nm) | 400 – 700 |
| Wedge Angle | 30 arcmin |
