λ/10 Ultra-Low Reflectivity Windows
Original price was: $99.95.$69.97Current price is: $69.97.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

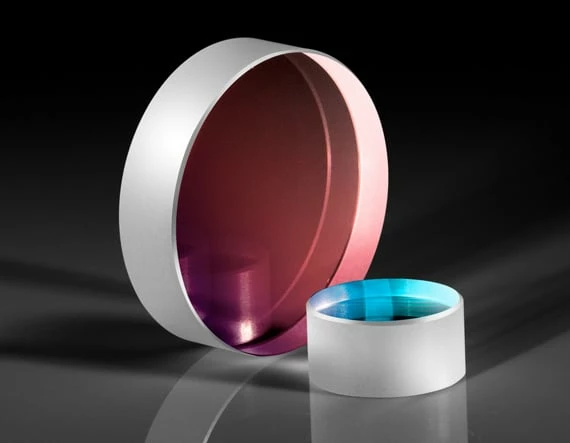

TECHSPEC® λ/10 Ultra-Low Reflectivity Windows feature anti-reflection coatings with reflection lower than 0.1% at the design wavelength. These windows feature high quality fused silica substrates with λ/10 surface flatness and 10-5 surface quality to minimize scatter. With ultra-low reflectivity and high damage thresholds, these windows are ideal for integration into laser systems to virtually eliminate surface reflections. TECHSPEC λ/10 Ultra-Low Reflectivity Windows are available in a range of laser V-Coats from 266nm to 1064nm for compatibility with Nd:YAG and Yb:YAG laser sources. Imperial diameter sizes from 12.7mm to 50.8mm are available.
- <0.1% Reflectivity Laser Line Coatings
- Nd:YAG and Yb:YAG Wavelength Options
- Reduce Typical Laser System Losses by 3% (Compared to a 0.25% Specified System with 10 Transmissive Optics)
- Increased Transmission Reduces Back Reflections, Ghost Images, and Stray Light
| Angle of Incidence (°) | 0 |
|---|---|
| Bevel | Protective as needed |
| Parallelism (arcmin) | <3 |
| Substrate | Fused Silica (Corning 7980) |
| Fused Silica Grade | 7980 0F |
| Surface Flatness (P-V) | λ/10 |
| Surface Quality | 10-5 |
| Young's Modulus (GPa) | 73 |
| Coefficient of Thermal Expansion CTE (10-6/°C) | 0.52 (+5 to +35°C)0.57 (0 to +200°C)0.48 (-100 to +200°C) |
| Density (g/cm3) | 2.20 |
| Index of Refraction nd | 1.458 |
| Poisson's Ratio | 0.16 |
| Abbe Number (vd) | 67.8 |
| Edges | Fine Ground |
