λ/20 High Power Laser Line Windows
Original price was: $117.00.$81.90Current price is: $81.90.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

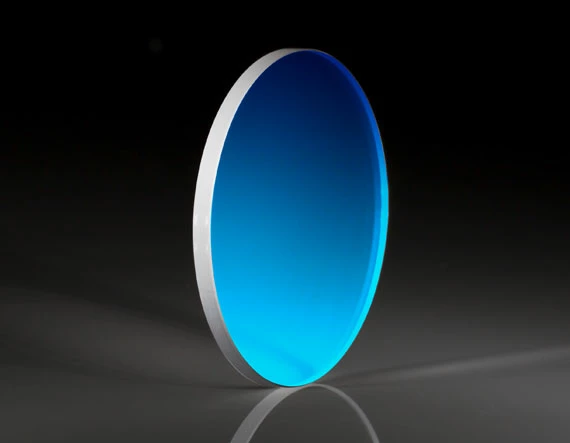

TECHSPEC® λ/20 High Power Laser Line Windows feature a high efficiency, high damage threshold V-coating to maximize transmission at the design wavelength. Damage thresholds ranging from 2 – 10J/cm2 allow for easy integration into most Nd:YAG laser systems. The coating is deposited on a precision excimer grade UV grade fused silica substrate for excellent thermal stability, low wavefront distortion, and ultra-low auto-fluorescence. For custom options or wedged versions, please contact our Sales Department.
- R < 0.25% for 266nm, 355nm, 532nm or 1064nm
- Low Auto-Fluorescence
- Damage Thresholds up to 10 J/cm2 @ 10ns @ 1064nm
| Angle of Incidence (°) | 0 |
|---|---|
| Bevel | Protective as needed |
| Thickness (mm) | 3.00 ±0.10 |
| Parallelism (arcsec) | ≤5 |
| Substrate | Fused Silica Excimer Grade (Corning 7980 KrF) |
| Fused Silica Grade | 7980 KrF 0A |
| Surface Quality | 10-5 |
| Transmitted Wavefront, P-V | λ/20 |
| Young's Modulus (GPa) | 73 |
| Coefficient of Thermal Expansion CTE (10-6/°C) | 0.52 (+5 to +35°C)0.57 (0 to +200°C)0.48 (-100 to +200°C) |
| Density (g/cm3) | 2.20 |
| Index of Refraction nd | 1.458 |
| Poisson's Ratio | 0.16 |
| Abbe Number (vd) | 67.8 |
| Edges | Fine Ground |
