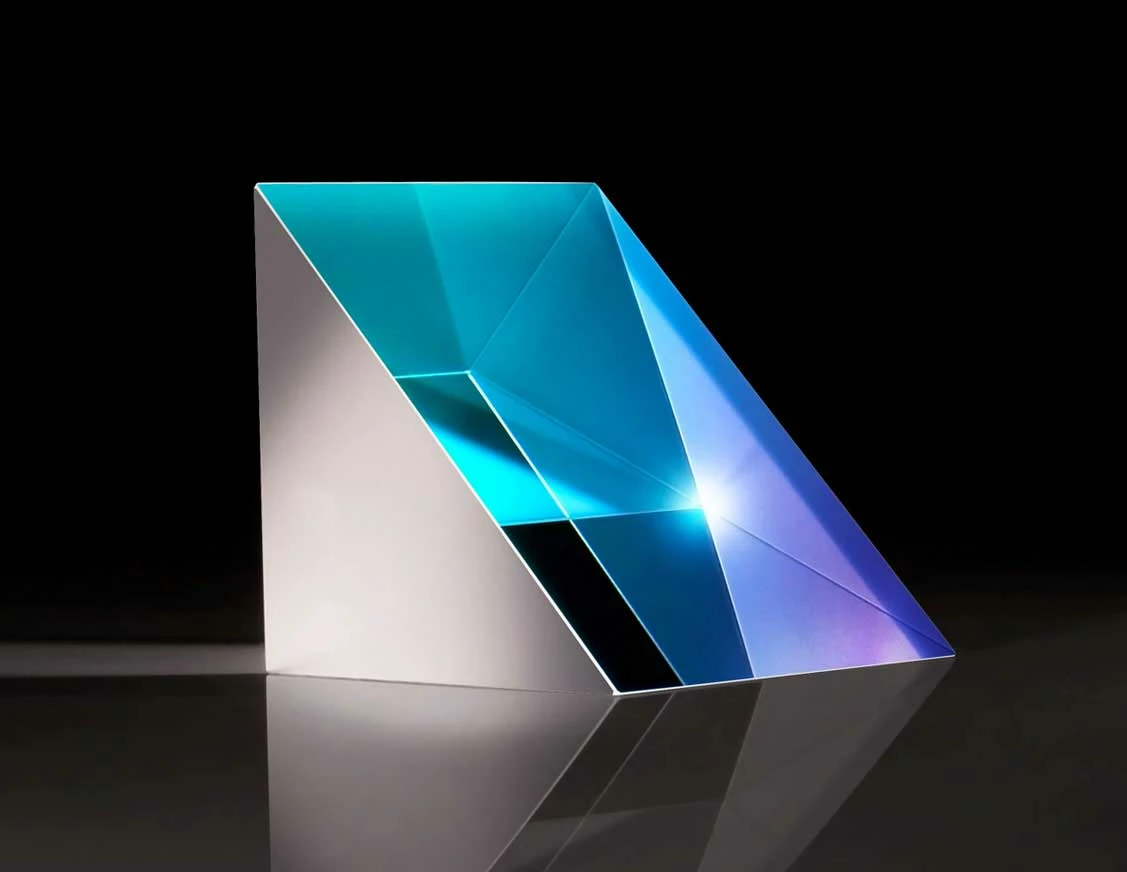

λ/20 UV Fused Silica Right Angle Prisms
Original price was: $242.50.$99.99Current price is: $99.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® λ/20 UVFS (Ultraviolet Fused Silica) Right Angle Prisms feature precision specifications for the most demanding applications. These prisms are tailored for laser applications with surface flatness of λ/20 and surface quality of 20-10. Our TECHSPEC® λ/20 UVFS Right Angle Prisms feature industry leading ±15 arcsecond angular tolerances for guaranteed control of optical path. The UV Fused Silica substrate offers extended range deep into the UV.
- λ/20 Surface Flatness
- UV Fused Silica Substrate
- Laser Optic Quality
| Angle Tolerance (arcsec) | ±15 |
|---|---|
| Substrate | Fused Silica (Corning 7980) |
| Surface Quality | 20-10 |
| Dimensional Tolerance (mm) | +0.00/-0.10 |
| Bevel | Protective bevel as needed |
| Clear Aperture (%) | 90 |
| Pyramid Tolerance (arcmin) | ±1 |
| Image Orientation | Left-Handed |
