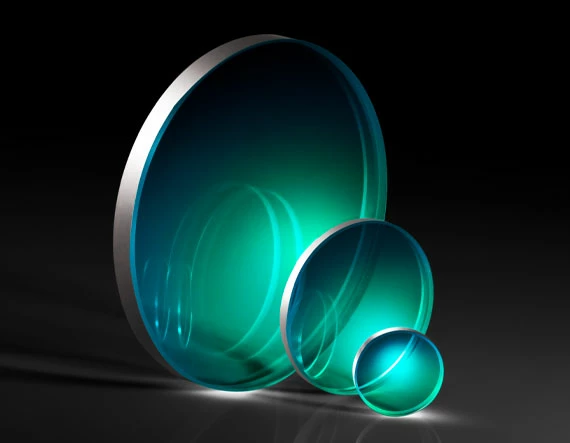

λ/4 UV Fused Silica Windows
Original price was: $85.00.$59.50Current price is: $59.50.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® λ/4 UV Fused Silica Windows are manufactured with 40-20 surface quality and λ/4 transmitted wavefront error specifications, making them ideal for imaging applications. Featuring UV fused silica substrates, these windows provide high transmission from the ultraviolet (UV) through the visible and near-infrared (NIR). Broadband anti-reflection (BBAR) coating options are available to minimize reflection losses and increase transmission. TECHSPEC λ/4 UV Fused Silica Windows are used in optical imaging applications, in low to medium powered laser applications, and as protective windows, especially in applications requiring transmission of UV light.
- Available Uncoated or BBAR Coated for UV, Visible, and NIR
- Ideal for Imaging Applications
- Standard Diameter Sizes from 10 to 75mm
- 1λ or λ/10 UV Fused Silica Windows Also Available
| Abbe Number (vd) | 67.8 |
|---|---|
| Bevel | Protective as needed |
| Clear Aperture (%) | 90 |
| Density (g/cm3) | 2.20 |
| Edges | Fine Ground |
| Index of Refraction nd | 1.458 |
| Knoop Hardness (kg/mm2) | 522 |
| Parallelism (arcmin) | <1 |
| Poisson's Ratio | 0.16 |
| Surface Quality | 40-20 |
| Young's Modulus (GPa) | 73 |
| Type of Window | Glass |
