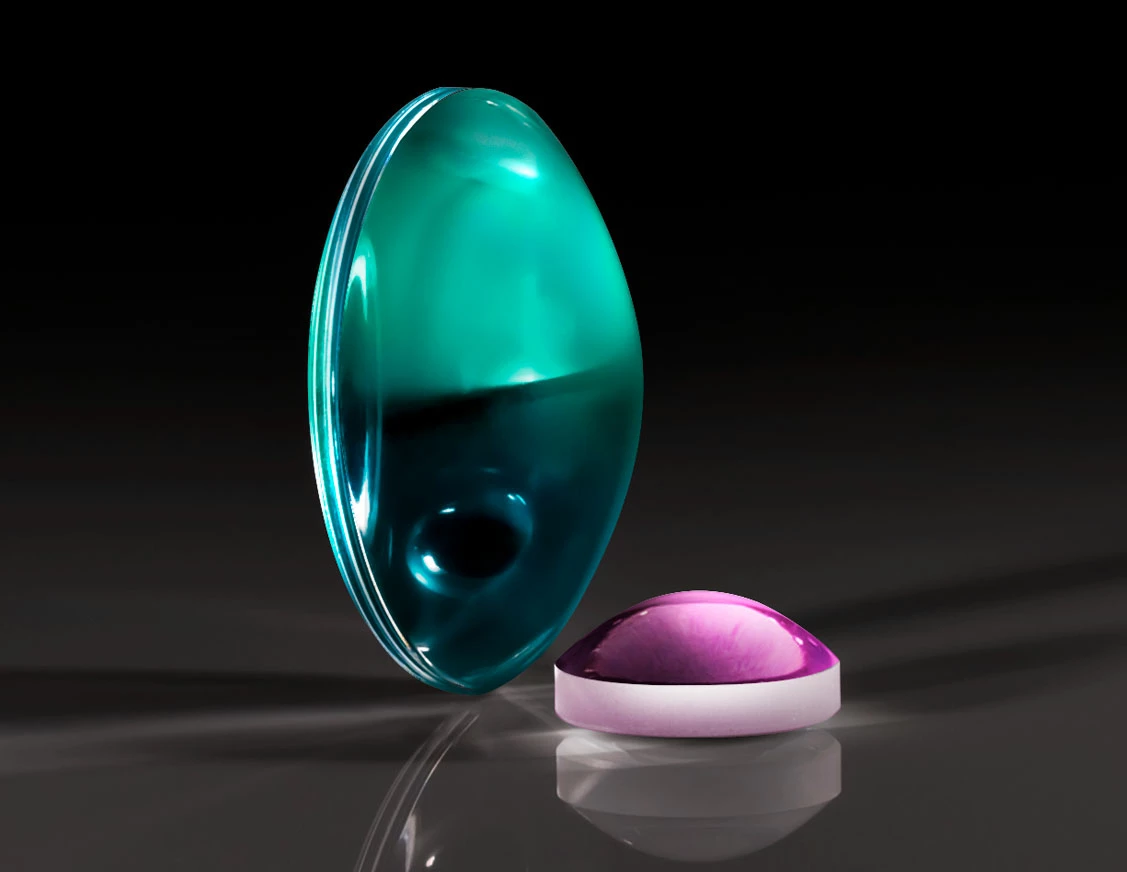

Molded Aspheric Condenser Lenses
Original price was: $26.50.$18.55Current price is: $18.55.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® Molded Aspheric Condenser Lenses have been designed for integration into the illumination path of OEM instrumentation. Available in 5 to 50mm diameters, the small diameter lenses are ideal for medical devices or portable instruments, while the larger lenses are typically integrated into benchtop analytical equipment including biotech instruments such as DNA sequencers and polymerase chain reaction (PCR) testing platforms. The front aspheric surface is molded to eliminate spherical aberrations, while the second surface is ground and polished for improved performance. Full prescription data and drawings are available to aid in design integration.
Note: For custom coating options, please contact us.
- High Numerical Apertures
- Fully Documented for OEM Integration
- Ideal for Illumination Applications
| Numerical Aperture NA | 0.625 |
|---|---|
| Substrate | Liba2000+ |
| Focal Length Tolerance (%) | ±5 |
| Centering (arcmin) | ≤25 |
| Surface Quality | As molded |
| f/# | 0.8 |
| Bevel | Protective bevel as needed |
| Shape of Back Surface | Plano |
| Conjugate Distance | Infinite |
| Note | Maximum of 5 imperfections allowed with an area of 0.8mm, per ISO 10110-7 specification of 5/5 x 0.63. Click here for more information on the ISO 10110 surface quality specification. |
