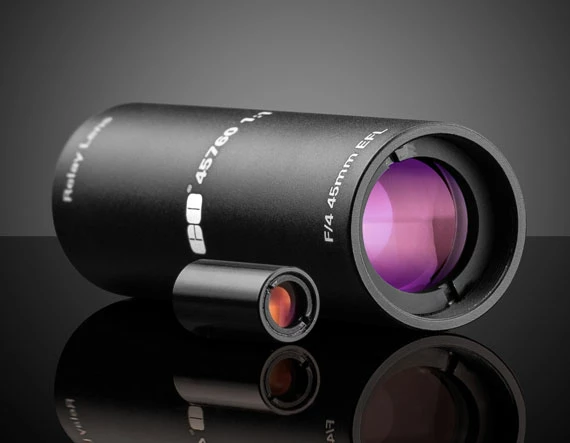

Mounted Relay Lenses

Designed for many of today’s electronic imaging applications, our TECHSPEC® Mounted Relay Lenses offer superior performance in a compact package. These lenses are ideal for designers who are building relay systems for photomultiplier tubes, inspection applications, and nearly any 1:1 imaging application. Field coverage goes up to 8mm diameter (specified on a ½” diagonal sensor) for the 15mm FL and 11mm diameter for the 30mm and 45mm FL versions. Barrel diameters have been kept to a minimum for easy integration. Distance values listed in the table are from the end of the housing.

Prescription information available upon request.
