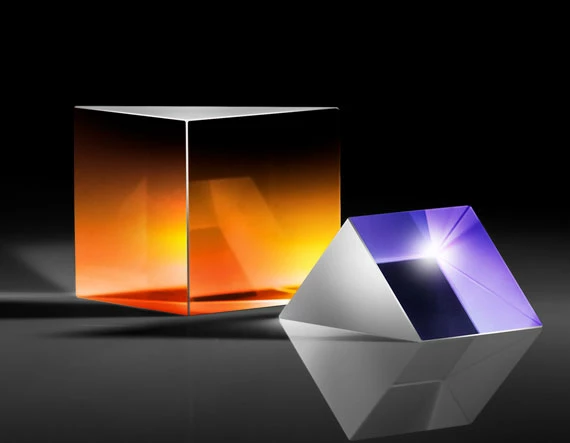

Nd:YAG Laser Line λ/20 UV Fused Silica Right Angle Prisms
Original price was: $280.00.$99.99Current price is: $99.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® Nd:YAG Laser Line λ/20 UV Fused Silica Right Angle Prisms offer a combination of precision surface flatness and guaranteed laser damage threshold AR coatings. These prisms are ideal for beam steering with minimal wavefront distortion due to λ/20 surface flatness on all faces. A ±15 arcsecond angular tolerance ensures consistent alignment for volume integration. TECHSPEC® Nd:YAG Laser Line λ/20 UV Fused Silica Right Angle Prisms are designed for transmission through the anti-reflection coated legs of the prism, resulting in a 90° turn in beam direction. A vertically integrated manufacturing process ensures these prisms are easily scaled for custom requests.
- λ/20 Surface Flatness
- <0.25% Reflection for Nd:YAG Applications
- 5 – 25mm Sizes Available
| Angle Tolerance (arcsec) | ±15 |
|---|---|
| Substrate | Fused Silica (Corning 7980) |
| Surface Quality | 20-10 |
| Dimensional Tolerance (mm) | +0.00/-0.10 |
| Bevel | Protective bevel as needed |
| Clear Aperture (%) | 90 |
| Pyramid Tolerance (arcmin) | ±1 |
| Image Orientation | Left-Handed |
| Surface Flatness (P-V) | λ/20 |
