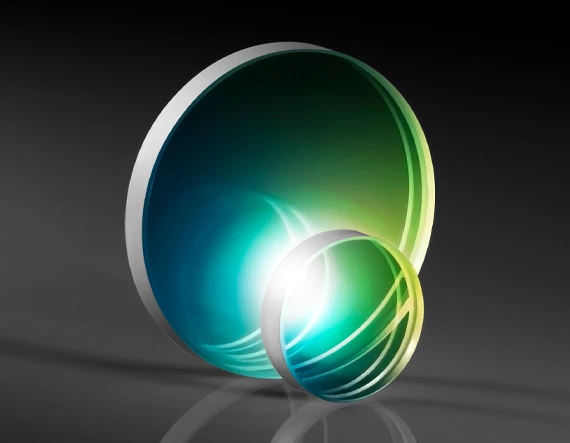

Near Infrared (NIR) Detection YAGLASS-T Filters
Original price was: $260.00.$99.99Current price is: $99.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Near Infrared (NIR) Detection YAGLASS-T Filters convert near-infrared (NIR) light between 900 – 1070nm to visible light with emission at 550 and 660nm. These nanocrystal doped glass filters emit visible light with as little as 30mW/mm2 of incident light at 1064nm without blooming or requiring pre-charging. The high transparency of the glass allows for beam size, shape, and mode to be easily viewed. NIR Detection YAGLASS-T Filters have a high damage threshold of 51 J/cm2 @ 1064nm, 10ns, making them an ideal alternative to Laser Detection Cards in high power laser applications with NIR lasers including Nd:YAG, Nd:doped, and Yb:doped lasers. NIR Detection YAGLASS-T Filters are available in standard 12.5 and 25mm diameter sizes; please contact us if your application requires custom dimensions.
- Convert NIR Light to Visible Light
- Minimum Sensitivity of 30mW/mm2 @ 1064nm for Emission
- Ideal Alternative to Laser Detection Cards for High Power Applications
- Fluorescent Glass Filters for Converting UV to Visible Light Also Available
| Substrate | YAGLASS-T |
|---|---|
| Coating | Uncoated |
| Index of Refraction nd | 1.539 |
| Transformation Temperature (°C) | 584 |
| Thickness (mm) | 3.00 ±0.10 |
| Peak Emission Wavelength (nm) | 550, 660 |
| Excitation Wavelength (nm) | 900 – 1070 |
| Minimum Sensitivity | 30 mW/mm2 @ 1064nm |
| Damage Threshold, By Design | 51 J/cm2 @ 1064nm, 10ns |
