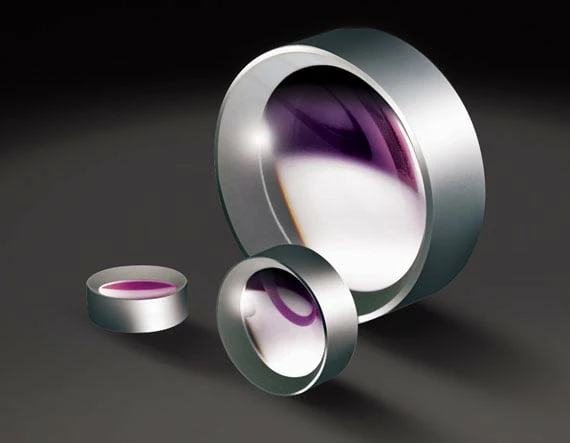

NIR I Coated Plano-Concave (PCV) Lenses
Original price was: $63.00.$44.10Current price is: $44.10.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® NIR I Coated Plano-Concave (PCV) Lenses are designed to bend parallel input rays to diverge from one another on the output side of the lens causing this lens to have a negative focal length. These lenses can be used for balancing aberrations created by other lenses within a system due to their negative spherical aberration. Plano-Concave (PCV) lenses are commonly used in a variety of applications including image reduction, beam expansion and telescopes. TECHSPEC® NIR I Coated Plano-Concave (PCV) Lenses offer optimal performance in the 600nm to 1050nm range. These lenses are also available Uncoated, VIS-EXT, MgF2, VIS 0°, VIS-NIR, YAG-BBAR, or with NIR II AR coating options.
- AR Coated to Provide <0.5% Reflectance per Surface for 600 – 1050nm
- Designed for 0° Angle of Incidence
- Various Coating Options: Uncoated, VIS-EXT, MgF2, VIS 0°, VIS-NIR, YAG-BBAR, and NIR II
| Coating | NIR I (600-1050nm) |
|---|---|
| Wavelength Range (nm) | 600 – 1050 |
| Bevel | Protective bevel as needed |
| Coating Specification | Ravg ≤0.5% @ 600 – 1050nm |
| Focal Length Specification Wavelength (nm) | 587.6 |
| Focal Length Tolerance (%) | ±1 |
| Damage Threshold, By Design | 7 J/cm2 @ 1064nm, 10ns |
| Power (P-V) @ 632.8nm | 1.5λ |
| Irregularity (P-V) @ 632.8nm | λ/4 |
