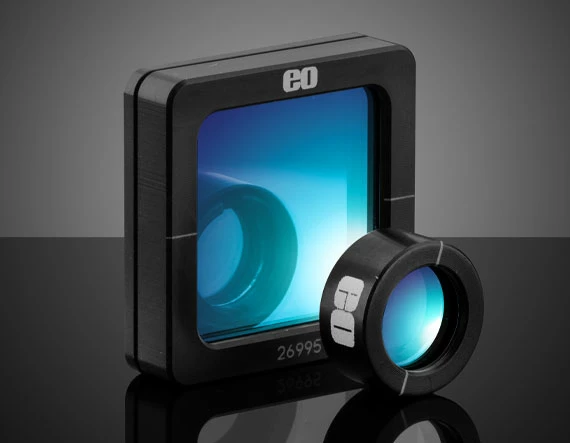

NIR Wire Grid Polarizers
Original price was: $345.00.$96.99Current price is: $96.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
NIR Wire Grid Polarizers are broadband polarizers designed to provide high transmission from 700 – 2500nm. These polarizers are optimized as either a high contrast version, providing 5900:1 extinction ratio at 2400nm, or as a high transmission version providing up to 91% transmission at 1900nm. NIR Wire Grid Polarizers are manufactured on high-grade display glass, providing excellent heat resistance for NIR applications. When incident light strikes the wire grid, P-polarized light contacts a dielectric and is transmitted, while S-polarized light contacts a mirror and is reflected.
- Designed for 700 – 2500nm
- High Transmission and High Contrast Versions Available
- Ideal for Thermal Imaging
| Angle of Incidence (°) | 0° ±20° |
|---|---|
| Coating | Uncoated |
| Substrate | Wire Grid on Display Grade Glass |
| Surface Quality | 80-50 |
| Thickness (mm) | 0.70 ±0.07 |
| Construction | Wire Grid |
| Thermal Expansion | 31.7 x 10-7/˚C (0 – 300˚C) |
| Wavelength Range (nm) | 700 – 2500 |
| Mount | 6061 Anodized Aluminium |
