OD 2.0 Shortpass Filters
Original price was: $43.00.$30.10Current price is: $30.10.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

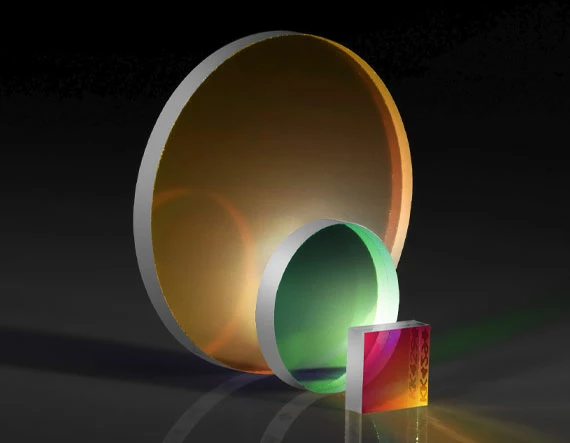

OD 2.0 Shortpass Filters are cost-effective filters that provide high transmission across their transmission band and OD 2.0 blocking across their rejection band. These shortpass filters are available with cut-off wavelengths covering the visible and near-infrared spectra from 400 to 950nm. By combining these filters with our OD 2.0 Longpass Filters, custom bandpass filters can be created to meet specific application requirements. OD 2.0 Shortpass Filters are ideal for fluorescence and spectral order separation applications, with the 6 x 6mm sized filters being suited for integration into optical instrumentation. The back surface of each filter is coated with an antireflection (AR) coating, increasing the overall throughput of the filter.
- Sharp Cut-Off Wavelength
- ≥85% Transmission and OD 2.0 Blocking
- 6mm Square or 12.5/25mm Diameter Sizes
- TECHSPEC® OD 4.0 Shortpass Filters Also Available
| Angle of Incidence (°) | 0 |
|---|---|
| Optical Density OD (Average) | ≥2.0 |
| Substrate | BOROFLOAT® |
| Coating | Hard Coated |
| Surface Quality | 60-40 |
| Thickness (mm) | 2.00 ±0.10 |
| Transmission (%) | ≥85 |
| Clear Aperture (%) | 90 |
| Environmental Durability | MIL-STD-810F, Section 507.4 |
| Physical Durability | MIL-C-48497A, Section 3.4.1 |
