Off-Axis Parabolic Mirrors With Alignment Through Holes
Original price was: $260.00.$95.99Current price is: $95.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

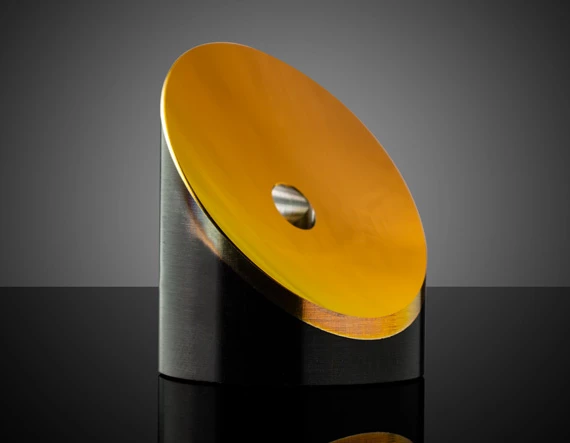

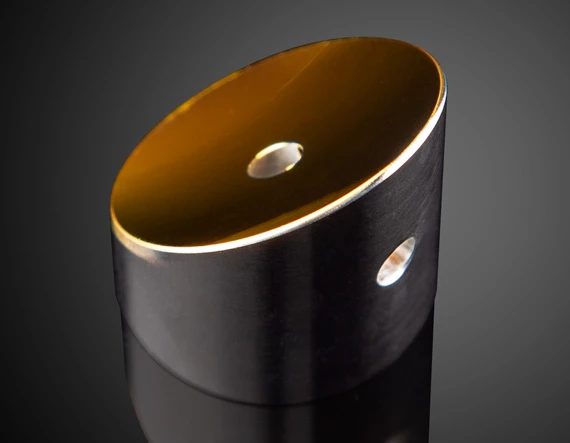

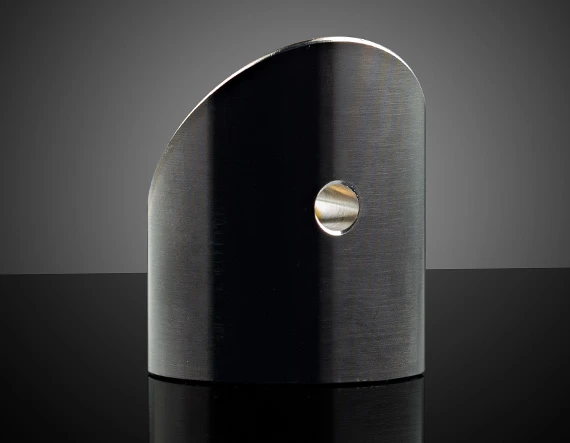

TECHSPEC® Off-Axis Parabolic (OAP) Mirrors with Alignment Through Holes are designed with two through holes, one that aligns with the focal point of beams focused off the parabolic surface and the second parallel to beams collimated by the surface. The hole placements allow for two beams to hit a target or sample simultaneously, which is a technique used to take pump-probe measurements. These OAPs feature aluminum substrates and are diamond turned with a surface roughness of <50Å RMS that minimizes scatter. TECHSPEC Off-Axis Parabolic Mirrors with Alignment Through Holes are available coated with protected gold, protected aluminum, or UV enhanced aluminum for integration into applications requiring high reflectance from the ultraviolet (UV) to the infrared (IR).
Note: Please contact us for custom options if your application requires a standard OAP Mirror with a through hole.
- Through Holes Parallel to Focused and Collimated Beams
- Range of Metallic Coatings Available
- <50Å RMS Surface Roughness
| Diameter (mm) | 25.40 +0.00/-0.10 |
|---|---|
| Effective Focal Length EFL (mm) | 25.40 |
| Focal Length Tolerance (%) | ±1 |
| Radius of Curvature (mm) | 25.40 |
| Coating Type | Metal |
| Off-Set Angle (°) | 90 |
| Parent Focal Length PFL (mm) | 12.7 |
| Surface Figure, RMS | λ/8 |
| Surface Roughness (Angstroms) | <50 RMS |
| Surface Quality | 80-50 |
| Substrate | Aluminum 6061-T6 |
| Y Offset (mm) | 25.40 |
| Through Hole Orientation | 1 x Parallel to Focused Beam 1 x Parallel to Collimated Beam |
| Through Hole Diameter (mm) | 4.1 |
