Optotune Fast Steering Mirrors
Original price was: $352.00.$95.99Current price is: $95.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Optotune Fast Steering Mirrors provide a larger optical scanning range and mirror size than conventional galvanometers or micro-electro-mechanical (MEMS) mirrors. This dual axis voice-coil mirror (VCM) has a compact footprint with a large 15mm mirror that can be adjusted with ±25° of mechanical tilt for ±50° of optical scanning range. The mirror is operated using the Optotune Cockpit GUI via USB, serial peripheral interface (SPI), or analog input. Optotune Fast Steering Mirrors are available with a protected silver or gold, and VIS dielectric coating, enabling their use in both visible and near-infrared (NIR) applications. Typical applications for these fast steering mirrors include automotive LiDAR, biometric eye tracking, and field of view expansion of vision systems.
Note: #14-574, #14-575, and #18-281 require #14-576 for operation. A heatsink is included with each mirror and recommended to be used to ensure proper heat-dissipation. Do not connect or disconnect the mirror head while the base unit is connected to power as this will damage the mirror driver.
- ±50° of Optical Scanning

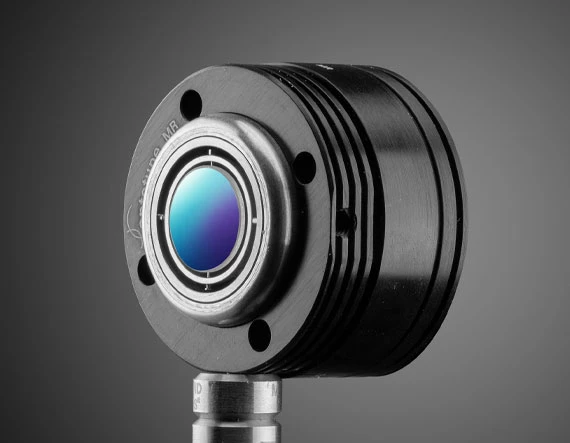

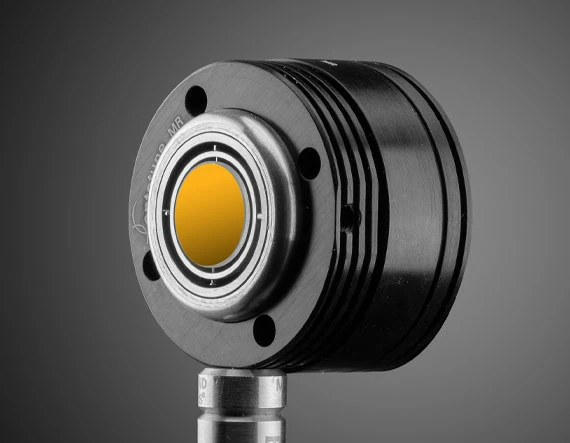

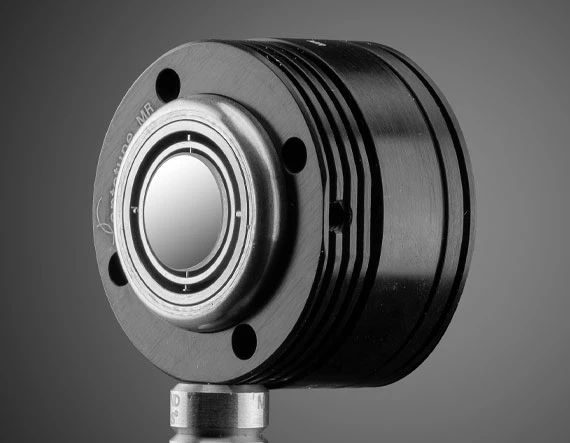

- Protected Gold or Silver, and VIS Dielectric Coated Mirror Options
- Compact 45mm Diameter Housing Footprint
- Control via USB, SPI, or Analog Input
| Diameter (mm) | 15.00 |
|---|---|
| Housing Diameter (mm) | 45 |
| Surface Quality | 60-40 |
| Mechanical Tilt (°) | ±25 |
| Storage Temperature (°C) | -40 to +85 |
| Operating Temperature (°C) | 0 to +40 |
| Power Requirement | 15 – 28 VDC |
| Power Supply | Power Supply Required and Sold Separately:USA: #14-576Europe: #14-576Japan: Not Available Korea: #China: #14-576 |
| Note | Do not connect or disconnect the mirror head while the base unit is connected to power as this will damage the mirror driver. |
| Scan Angle (°) | ±25 (Mechanical) ±50 (Optical) |
| Step Response 0.1° (ms) | 2 |
| Step Response 20° (ms) | 12 |
