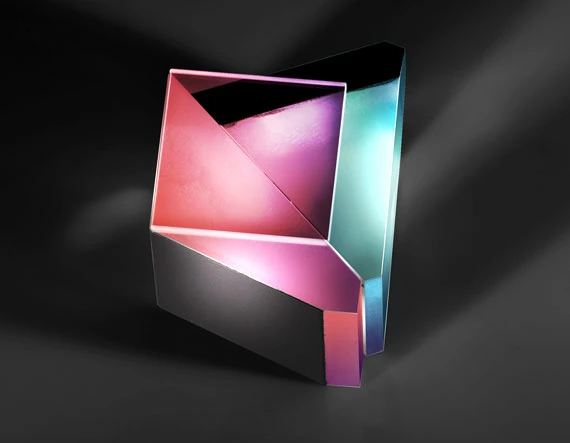

Pechan Prisms
Original price was: $395.00.$95.99Current price is: $95.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® Pechan Prisms leverage Edmund Optics’ manufacturing expertise to deliver a precision inline instrumentation prism to rotate an image by 180 degrees. This image rotation is employed in many direct view applications and replaces a relay prism or lens system for a more compact optical train. Overall clarity of the system is ensured by adding both an anti-reflective and metallic coating to each prism. The TECHSPEC Pechan Prisms feature 5 arcsecond roof angle tolerances to maintain image resolution.
- Provides Inline Image Rotation of 180°
- Compact Design for OEM Integration
- Air Spaced for Optimal Performance
| Coating | VIS 0° & Aluminized |
|---|---|
| Substrate | N-BK7 |
| Surface Quality | 40-20 |
| Dimensional Tolerance (mm) | ±0.1 |
| Image Orientation | Right-Handed |
| Coating Specification | Entrance/Exit Faces: Ravg ≤0.4% @ 425 – 675nm Roof: Ravg >85% @ 400 – 700nm w/Black Overpaint |
| Ray Deviation (°) | 0 |
| Wavelength Range (nm) | 400 – 700 |
| Surface Flatness (P-V) | λ/8 |
| Ray Deviation Tolerance (arcmin) | ±10 |
