Precision Spherical Ultraviolet (UV) Mirrors
Original price was: $365.00.$96.99Current price is: $96.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

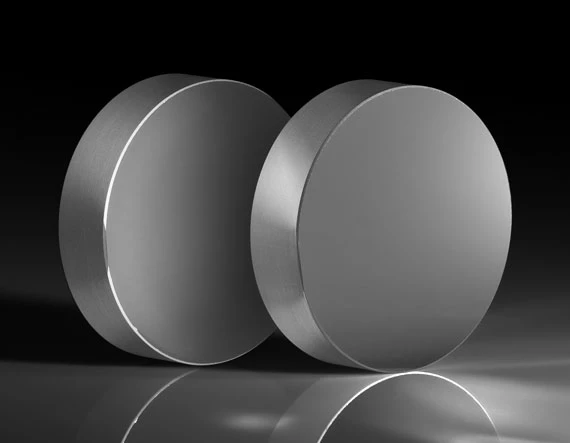

TECHSPEC® Precision Spherical Ultraviolet (UV) Mirrors feature Enhanced Deep UV (DUV) or Vacuum UV (VUV) enhanced metallic coatings on high precision concave laser mirror substrates. The VUV coating is designed for peak reflectivity at 120nm and the Enhanced DUV coating at 190nm; both coatings provide similar reflectivity to standard enhanced aluminum coatings outside of UV wavelengths. These coatings are vacuum compatible down to 10-7 Torr and are deposited on fused silica substrates, providing excellent resistance to temperature fluctuations. TECHSPEC® Precision Spherical Ultraviolet (UV) Mirrors are ideal for use in DUV spectrophotometers, inductively coupled plasma (ICP) spectrophotometers, or other VUV/UV-based analytical applications.
Note: These enhanced metallic coatings are relatively soft and can be easily damaged by fingerprints and aerosols.
- 120nm and 190nm Design Wavelengths
- Ideal for Focusing VUV or DUV Light
- Broadband Reflectivity through the Visible and IR
- Also Available as Precision Flat Mirrors
| Substrate | Fused Silica (Corning 7980) |
|---|---|
| Surface Quality | 20-10 |
| Diameter (mm) | 25.40 +0.00/-0.20 |
| Coating Type | Metal |
| Back Surface | Fine Grind |
| Clear Aperture (%) | 90 |
| Edge Thickness ET (mm) | 6.35 ±0.10 |
| Irregularity (P-V) @ 632.8nm | λ/10 |
| Vacuum Compatibility | 10-7 Torr |
