Precision Zero Order Waveplates (Retarders)
Original price was: $357.00.$99.99Current price is: $99.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

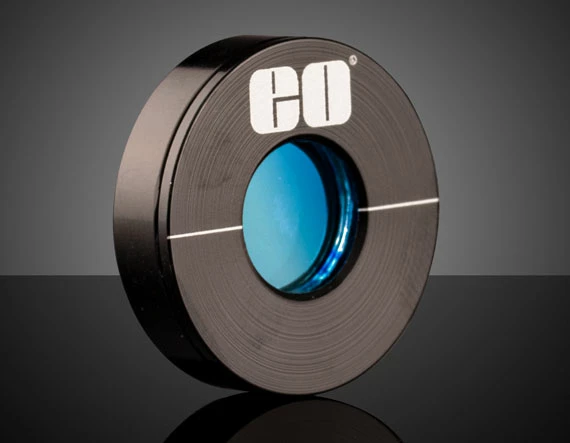

Precision Zero Order Waveplates (Retarders) feature carefully aligned birefringent polymer sheets laminated between two precision N-BK7 windows, and are available in standard λ/4 and λ/2 options for common visible and NIR wavelengths. These polymer waveplates (retarders) offer excellent angular field of view because they are true zero-order retarders. Also, they will experience less than 1% retardance change over a ±10° angle of incidence. Each Precision Zero Order Waveplates (Retarders) is mounted in a metal ring with the fast axis clearly marked.
- λ/4 and λ/2 Retardance
- Excellent Angular Field of View
- Birefringent Polymer Stack
- High Damage Threshold of 500 W/cm2
| Clear Aperture CA (mm) | 10.16 |
|---|---|
| Diameter (mm) | 25.40 |
| Substrate | Polymer Film on N-BK7 |
| Operating Temperature (°C) | -20 to +50 |
| Reflection (%) | 0.5 |
| Surface Quality | 40-20 |
| Thickness Tolerance (mm) | ±0.508 |
| Dimensional Tolerance (mm) | ±0.127 |
| Construction | Birefringent Polymer Stack |
| Transmitted Wavefront, RMS | ≤λ/5 @ 632.8nm |
| Retardance Tolerance | λ/350 |
| Mount Thickness (mm) | 6.35 |
| Damage Threshold, By Design | 500 W/cm2 |
| Retardance Order | 0 |
