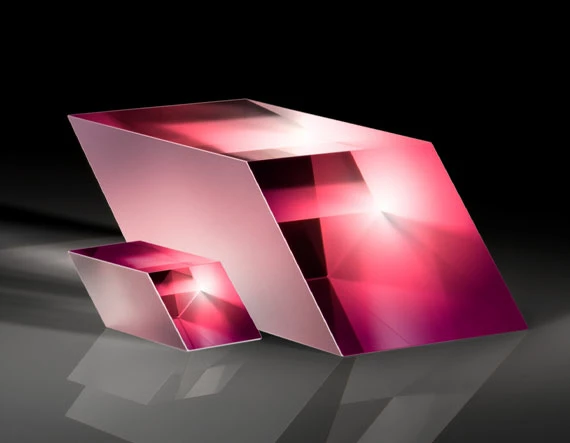

Rhomboid Prisms
Original price was: $142.50.$96.99Current price is: $96.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Rhomboid prisms are commonly used to displace a laser beam without changing its direction. In imaging applications, rhomboid prisms will displace the optical axis without inverting the image. The lateral displacement is equal to the length of the prism (specified by dimension D). Our TECHSPEC® Rhomboid Prisms feature high tolerance angles that keep the output beam parallel to the input beam to within 30 arcseconds. They are ideal for demanding displacement applications.
- Lateral Displacement of Beam
- Displaces Optical Axis Without Inverting Image
- Input and Output Beams Parallel to ±30 Arcseconds
- Beam Displacing Dove Prisms Also Available
| Angle Tolerance (arcsec) | ±5 |
|---|---|
| Beam Deviation (arcsec) | ±30 |
| Dimensional Tolerance (mm) | ±0.1 |
| Image Orientation | Beam Deviation |
| Ray Deviation (°) | 0.00 |
| Substrate | N-BK7 |
| Surface Flatness (P-V) | λ/8 |
| Surface Quality | 40-20 |
