Rotation Kinematic Mounts
Original price was: $150.00.$95.99Current price is: $95.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

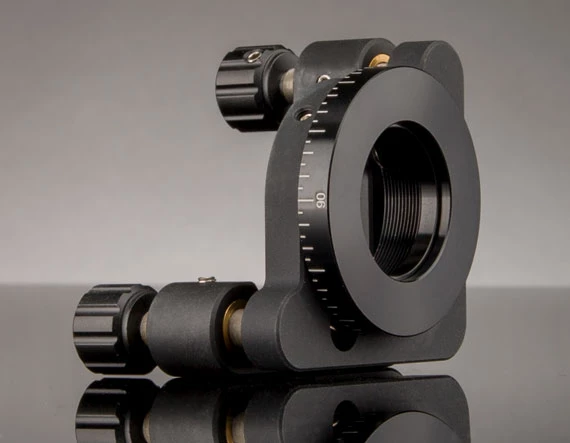

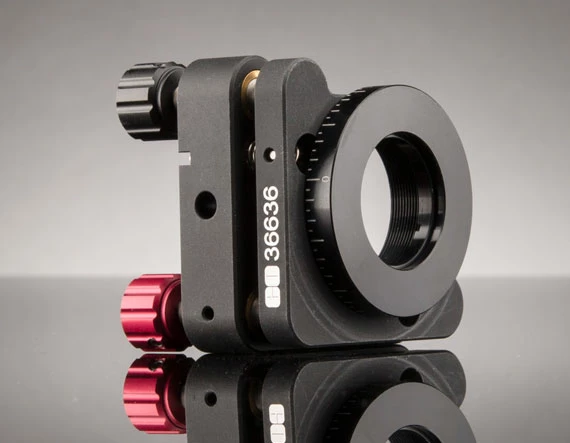

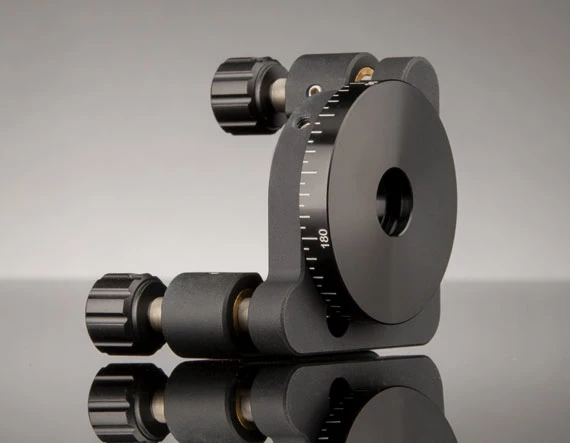

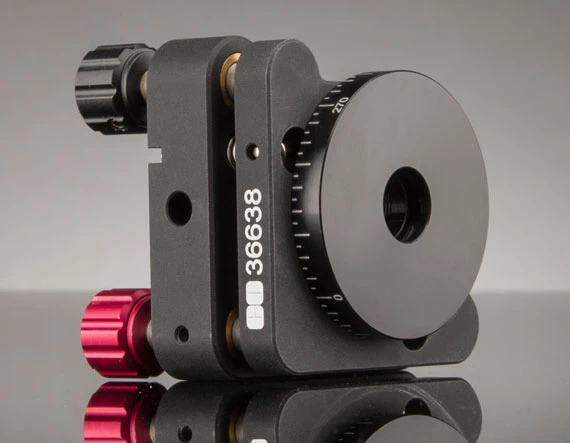

TECHSPEC® Rotation Kinematic Mounts provide precision control when positioning an optical element. These mounts utilize 100 TPI adjustment screws to offer precise motion control with a tip/tilt range of ±5 arcmin. Continuous 360° optic rotation is achieved through a custom designed optic cell and Teflon ring subassembly. TECHSPEC® Rotation Kinematic Mounts employ retainer ring mounting for evenly distributed pressure on the optics circumference. Available for 25.4mm and 12.7mm diameter optics, these components provide a convenient method for cylinder lens or polarizer optic mounting.
- 360° Continuous Optic Rotation
- 25.4mm Centerline Height
- 5° Graduations
| Type of Optics | Circular |
|---|---|
| Construction | Aluminum plates, stainless steel screws, and brass thread bushings |
| Angle Tolerance (°) | 0.4 per 0.25mm turn |
| Fine Tilt Angle (°) | ±5 |
| Fine Tip Angle (°) | ±5 |
| Sensitivity per 1° Knob Rotation (arcsec) | 4 |
| Thermal Stability (μrad) | <5 |
| Adjustment Screw Pitch (mm) | 0.25 |
| Compatible Post | M4 x 0.7, 8-32 |
| Min. Thickness of Compatible Optics (mm) | 1.8 |
| Pointing Stability (μrad) | 1.3 |
