Sapphire Windows With Through Holes
Original price was: $102.50.$71.75Current price is: $71.75.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

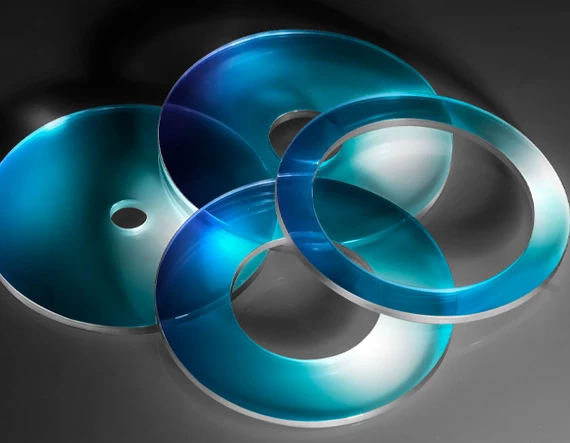

Sapphire Windows with Through Holes, also referred to as sapphire washers, feature 25.4mm diameter sapphire substrates with a centered through hole ranging in diameter from 3.2 – 19.1mm. Sapphire offers extreme surface hardness second only to diamond, high thermal conductivity, and is chemically inert, making it ideal for use in harsh environments. These windows provide high transmission from 0.33 – 5.5μm and can be made much thinner than glass windows due to the structural strength of sapphire. Sapphire Windows with Through Holes can be manufactured as modified standard versions of our sapphire windows or as entirely custom products; please contact us to discuss your application requirements.
- 25.4mm Diameter Sapphire Substrates
- 3.2 – 19.1mm Through Hole Diameters
- High Transmission From 0.33 – 5.5μm
| Abbe Number (vd) | 72.24 |
|---|---|
| Knoop Hardness (kg/mm2) | 1900 |
| Young's Modulus (GPa) | 435 |
| Wavelength Range (nm) | 330 – 5500 |
| Surface Quality | 80-50 |
| Surface Flatness (P-V) | 2λ (typical) |
| Substrate | Sapphire (Al2O3) |
| Poisson's Ratio | 0.27 |
| Parallelism (arcmin) | ≤3.5 |
| Index of Refraction nd | 1.77 |
| Axis Orientation | Random |
| Density (g/cm3) | 3.97 |
| Coefficient of Thermal Expansion CTE (10-6/°C) | 8.8 |
| Coating | Uncoated |
| Thickness (mm) | 1.00 ±0.127 |
| Diameter (mm) | 25.40 ±0.127 |
| Birefringence (no-ne) | 0.008 for Visible Light Orthogonal to Optical Axis |
| Bevel | Protective as needed |
| Type of Window | Crystal |
