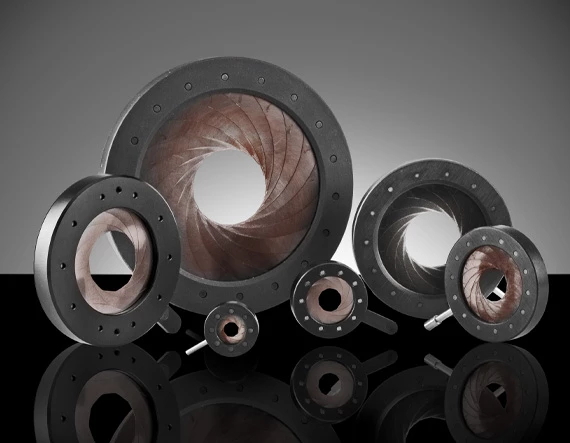

Standard Series Iris Diaphragms are specifically designed for OEM integration and general laboratory use. All of these diaphragms offer exceptionally smooth operation over the lever travel, from maximum to minimum aperture (approximately 90°). Lever actuators are available in two styles: stainless steel “pin” or plastic “tab.” Standard Series Iris Diaphragms have blued spring steel leave construction and black housing finish. When incorporated into standard optical systems, iris diaphragms can provide control of system f/# (f/# = focal length/effective diameter), field stop diameter, and overall energy throughput. It should be noted, however, that the location of the iris is critical to how it will affect the system.
For specific OEM application assistance, please contact our Applications Engineering Department.
Note: Iris Diaphragm Mounts sold separately.
- Used to Adjust f/#, Field Stop Diameter, and Overall Light Throughput
- Mounted Version Features a Tapped Hole for Post Mounting
- Abundant Types for Varying Applications
- Iris Diaphragm Mounts Sold Separately
