Stemmed Laser Mirrors
Original price was: $115.00.$80.50Current price is: $80.50.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

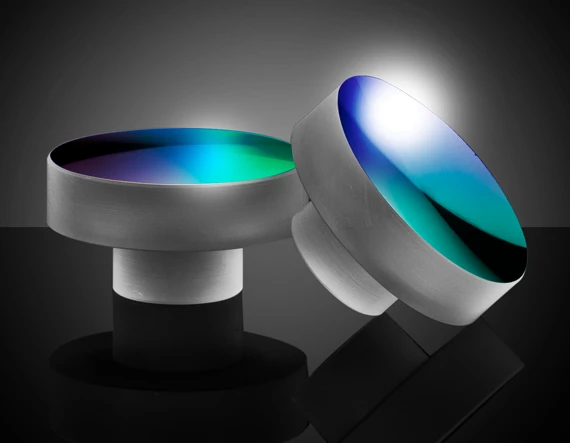

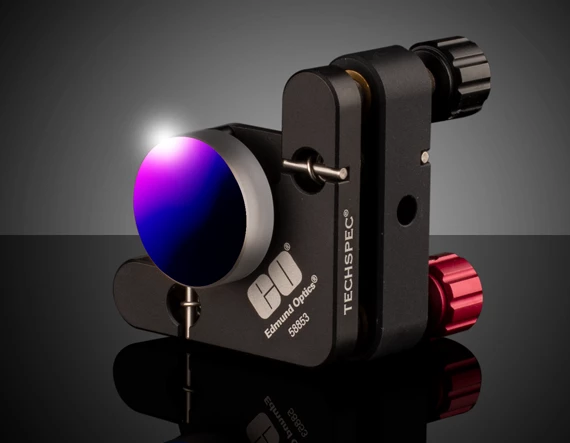

TECHSPEC® Stemmed Laser Mirrors provide low mounting stress on highly reflective, laser line mirrors. Designed to be mounted to TECHSPEC® Kinematic Circular Optical Mounts and E-Series Kinematic Optical Mirror Mounts, all contact between the mirror and the kinematic mount is through the stem, reducing the stress imparted on the optical surface of the mirror. Due to their stress-reducing design and monolithic fused silica construction, these mirrors provide excellent thermal stability and improved surfaced flatness compared to traditionally mounted λ/10 flat mirrors. TECHSPEC® Stemmed Laser Mirrors are available at common laser wavelengths, making them ideal for laboratories and integration in laser systems.
Note: Contact us for custom options.
- Stemmed Design Reduces Stress on Mirror Surface when Mounted by Stem
- >99% Reflectivity at Standard Laser Wavelengths
- 10-5 Surface Quality for Reduced Scatter in Sensitive Laser Applications
- TECHSPEC® Broadband Dielectric and Metallic Coated Stemmed Mirrors Also Available
| Back Surface | Commercial Polish |
|---|---|
| Clear Aperture (%) | 90.00 |
| Diameter (mm) | 25.00 +0.00/-0.10 |
| Substrate | Fused Silica (Corning 7980) |
| Surface Flatness (P-V) | λ/10 |
| Surface Quality | 10-5 |
| Thickness (mm) | 13.00 ±0.20 |
| Stem Diameter (mm) | 12.50 +0.00/-0.10 |
| Compatible Kinematic Mount | #58-853 |
| Stem Length (mm) | 6.50 ±0.20 |
