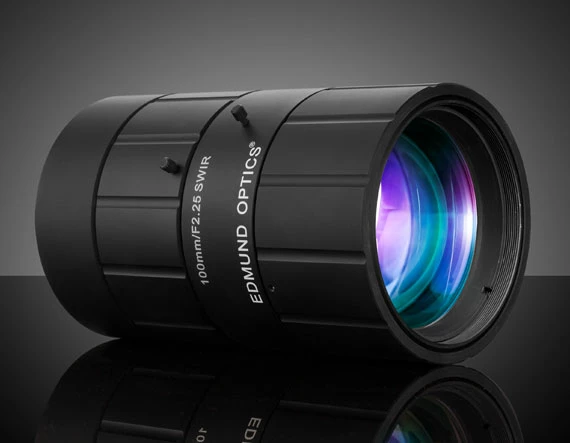

SWIR Series Fixed Focal Length Lenses
Original price was: $386.00.$99.99Current price is: $99.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® SWIR Series Fixed Focal Length Imaging Lenses are compact, lightweight lenses designed for applications operating in the short-wave infrared (SWIR) spectra, ranging from 0.9 – 1.7μm. These lenses feature SWIR-optimized optical designs, glass types, and AR coatings from 0.8 – 1.8μm. Designed for high throughput and superior performance, the SWIR Series lenses are commercial-off-the shelf (COTS) lenses with low f/#’s, covering large 25mm sensors. TECHSPEC® SWIR Series Fixed Focal Length Lenses are ideal for a range of applications including inspection, sorting, and quality control.
- 4/3″, C-Mount, M42, F-Mount Lens
- Up to 3 MegaPixels, 10µm Pixel Size Sensors
- Designed and Optimized for SWIR (900-1700nm) InGaAs Sensors
- 25mm to 100mm Focal Length
| Iris Option | Variable |
|---|---|
| Maximum Image Circle (mm) | 25.60 |
| Note | Lens will cover larger 25.6mm and 20.5mm line scan sensors. |
| Maximum Sensor Format | 4/3" |
| Imaging Lens Type | SWIR Lens |
| Storage Temperature (°C) | -20 to +60 For questions regarding operating temperature please contact our support team |
