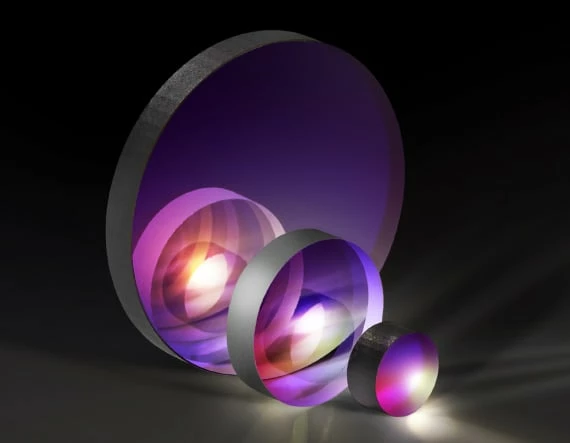

Thin Film Laser Line Polarizers
Original price was: $285.00.$95.99Current price is: $95.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® Thin Film Laser Line Polarizers are used to transmit P-polarized light while reflecting S-polarized light. These polarizers with thin film dielectric coatings combine high laser damage thresholds with high extinction ratios for optimal performance in a range of laser applications. The UV grade fused silica substrate maximizes performance, while the hard anti-reflection coating makes these durable polarizers easy to clean and simple to align. TECHSPEC Thin Film Laser Line Polarizers are available for common laser wavelengths.
- High Extinction Ratio of 10,000:1
- 45° Angle of Incidence
- Available for Nd:YAG Harmonics and HeNe Wavelengths
| Angle of Incidence (°) | 45 ±2 |
|---|---|
| Extinction Ratio | 10,000:1 |
| Substrate | Fused Silica (Corning 7980) |
| Surface Quality | 40-20 |
| Thickness (mm) | 6.00 |
| Thickness Tolerance (mm) | ±0.25 |
| Transmission (%) | >98 (P-Polarization) |
| Dimensional Tolerance (mm) | +0.00/-0.25 |
| Construction | Thin Film Dielectric |
| Clear Aperture (%) | 90 |
| Transmitted Wavefront, P-V | λ/4 @ 633nm |
| Damage Threshold, By Design | 2 J/cm2 @ 532nm, 10ns, S or P Polarization |
