Ultra-Thin Nanoparticle Polarizers
Original price was: $384.00.$99.99Current price is: $99.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

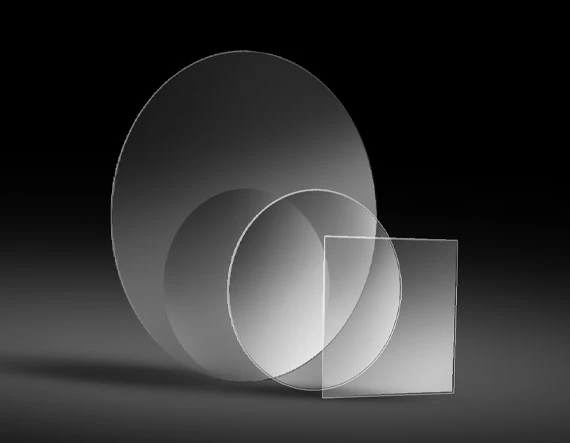

Ultra-Thin Nanoparticle Polarizers are a lightweight 90µm thick alternative to traditional polarizers while providing a high transmission and an extinction ratio of >10,000:1. Constructed from sodium silicate glass substrate doped with prolate silver nanoparticles, these polarizers provide high temperature stability up to +400°C, chemical resistance, and resistance to UV radiation and bleaching. These polarizers are available uncoated, Single-Side AR coated, or Double-Side AR coated and cover wavelength ranges from 1260-1600nm. Ultra-Thin Nanoparticle Polarizers design are ideal for use in telecom, medical, and aerospace applications as well as in optical isolators, polarization interferometry, and improving signal-to-noise ratio.
- Lightweight 90µm Thick Substrate
- >10,000:1 Extinction Ratio
- Excellent Resistance to Temperature, Chemicals, and Harsh Environments
- Range of Standard Sizes, Coatings, and Custom Options Available
| Extinction Ratio | >10,000:1 |
|---|---|
| Substrate | Sodium Silicate Glass Doped with Silver Nanoparticles |
| Operating Temperature (°C) | -50 to +400 |
| Surface Quality | 40-20 |
| Thickness (mm) | 0.09 ± 0.025 |
| Damage Threshold, By Design | 10 W/cm2 |
| Acceptance Angle (°) | ± 20° |
| Transmitted Wavefront Error, RMS |
