UltraFast Innovations (UFI) 2μm Highly-Dispersive Broadband Ultrafast Mirrors

Original price was: $328.00.Current price is: $98.99.

SKU: ZWRTD 39498 Categories: Laser Line Mirrors, Laser Mirrors, Laser Optics

Free Shipping, Quality Goods
Free Shipping, No Compromise on Quality
Quality Products, Quality Service
Effortless Shopping, Quality Products

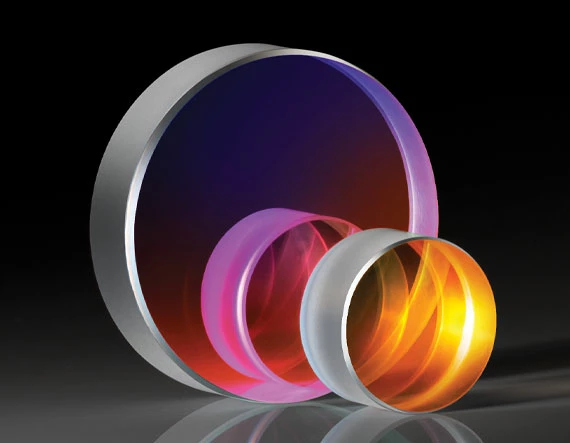

UltraFast Innovations (UFI) 2μm Highly-Dispersive Broadband Ultrafast Mirrors feature an ultrafast chirped coating and are designed for pulse compression of Thulium (Tm) and Holmium (Ho) lasers, as well as for intracavity dispersion compensation. These mirrors have a high negative group delay dispersion (GDD) of -1000fs² at a 5° angle of incidence (AOI), allowing for pulse compression <100fs. With low loss reflectance >99.9% (P-polarization) between 2000 – 2200nm, these 2 micron mirrors have an absolute reflectance reaching >99.95%. UFI 2μm Highly-Dispersive Broadband Ultrafast Mirrors are ideal for use inside 2μm thin-disk laser oscillators due to their excellent spectral performance, low loss, and proven GDD. These highly-dispersive mirrors are available in two standard sizes of 12.7mm and 25.4mm diameters and are ideal for integration into femtosecond laser systems.

Reflectivity >99.9% Between 2000 – 2200nm
GDD of -1000fs² @ 5° AOI
Ideal for <100fs Pulse Compression of Thulium and Holmium Lasers
Broadband Ultrafast Chirped Coating

Typical Applications	Thulium and Holmium Lasers
Wedge (arcmin)	10
Clear Aperture (%)	80
Back Surface	Commercial Polish
Reflection at DWL (%)	>99.95
Reflectivity (Rp%)	99.9
Coating Specification	Ravg >99.9% @ 2000 – 2200nm (p-polarization)
GDD Specification	-1000fs2 @ 2000 – 2200nm (p-polarization)
Wavelength Range (nm)	2000 – 2200
Irregularity (P-V) @ 632.8nm	λ/10
Coating Type	Dielectric
Coating	Chirped Ultrafast (2000-2200nm)
Design Wavelength DWL (nm)	2000
Thickness (mm)	6.35 ±0.01
Angle of Incidence (°)	5
Substrate	Fused Silica (Corning 7980)
