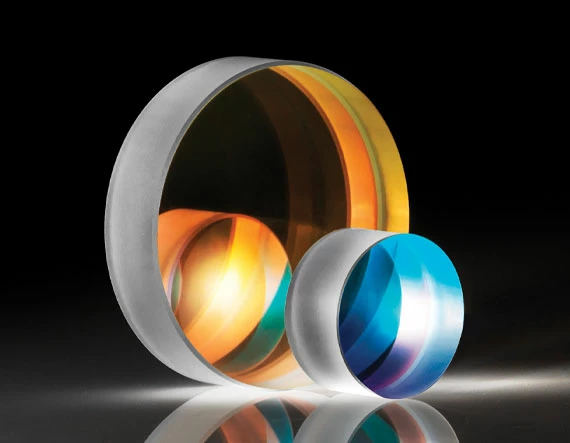

UltraFast Innovations (UFI) 45° AOI Ultrafast Chirped Mirrors

Original price was: $383.00.Current price is: $96.99.

SKU: ZWRTD 39553 Categories: Flat Mirrors, Laser Mirrors, Optical Mirrors, Optics

Free Shipping, Quality Goods
Free Shipping, No Compromise on Quality
Quality Products, Quality Service
Effortless Shopping, Quality Products

UltraFast Innovations (UFI) 45° AOI Ultrafast Chirped Mirrors are designed with a 45° angle of incidence for compression or dispersion compensation of ultrafast beams during beam transport. These ultrafast mirrors have a multilayer magnetron sputtered coating optimized to provide a negative group delay dispersion (GDD) and high reflectivity from 725 to 1000nm. They also feature laser grade substrates with high surface quality to minimize light scatter and low irregularity, allowing for reflected ultrafast pulses to maintain their optical power and intensity. UFI 45° AOI Ultrafast Chirped Mirrors are ideal for pulse compression and dispersion compensation of ultrafast pulses from femtosecond lasers, such as Ti:sapphire, during beam transport. Please contact us if your application requires an Ultrafast Chirped Mirror with a custom angle, size, or design wavelength.

High Reflectivity and Negative Group Delay Dispersion (GDD)
Ideal for Dispersion Compensation and Beam Compression @ 45° AOI
Designs for Femtosecond Lasers, Including Ti:sapphire

Typical Applications	Pulse Compression @ 45° of Ti:sapphire Ultrafast Lasers
Wedge (arcmin)
Clear Aperture (%)	80
Back Surface	Commercial Polish
Reflection at DWL (%)	99.8
Coating Specification	Ravg >99.8% @ 725 – 1000nm (P-Polarization)
GDD Specification	-70fs2 @ 725 – 1000nm (P-Polarization)
Wavelength Range (nm)	725 – 1000
Irregularity (P-V) @ 632.8nm	λ/10
Coating Type	Dielectric
Coating	Ultrafast Chirped (725-1000nm)
Design Wavelength DWL (nm)	800
Thickness (mm)	6.35 ±0.2
Angle of Incidence (°)	45
Substrate	Fused Silica (Corning 7980)
Damage Threshold, By Design	0.2 J/cm2 @ 800nm, 50fs, 1kHz, 100μm Beam Diameter
