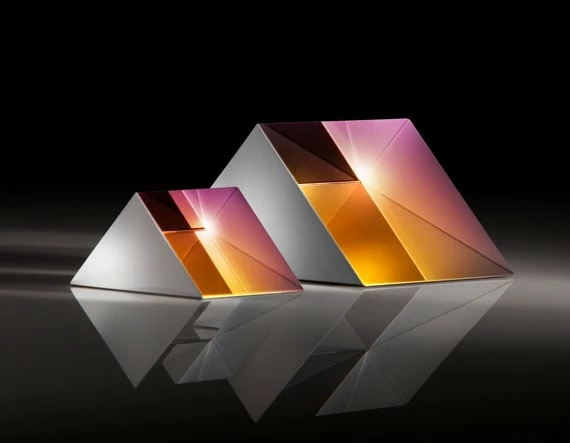

UV Fused Silica Right Angle Prisms
Original price was: $72.50.$50.75Current price is: $50.75.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in combination for image/beam displacement. TECHSPEC® UV Fused Silica Right Angle Prisms are made from UV fused silica which features low thermal expansion and excellent transmission throughout the UV, visible, and NIR spectral ranges.
- Ideal for Broadband Applications
- Available with Aluminized and AR Coated Faces
- Sizes Ranging from 5 – 50mm
- Additional Right Angle Prism Options Available
| Substrate | Fused Silica (Corning 7980) |
|---|---|
| Surface Quality | 60-40 |
| Dimensional Tolerance (mm) | ±0.10 Legs |
| Angle Tolerance (arcmin) | ±5 |
| Bevel | Protective bevel as needed |
| Pyramid Tolerance (arcmin) | ±5 |
| Image Orientation | Left-Handed |
| Ray Deviation (°) | 90 |
| Surface Flatness (P-V) | λ/2 |
