UV Plate Beamsplitters
Original price was: $105.00.$73.50Current price is: $73.50.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

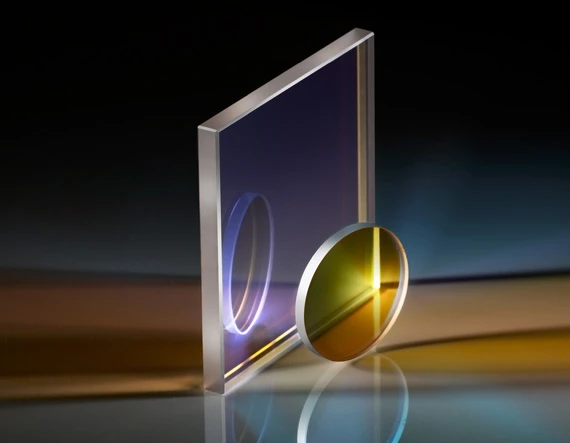

TECHSPEC® UV Plate Beamsplitters offer optimum performance in the 250-450nm spectral range and feature low absorption and negligible ghost reflections. The precision fused silica substrate has been designed to minimize the additional optical path length a beamsplitter adds to an imaging or photonic system. Available in multiple transmission/reflection ratios, TECHSPEC® UV Plate Beamsplitters are ideal for fluorescence imaging, biomedical and pharmaceutical applications, forensics, and spectroscopy. All coatings are designed for 45° AOI and random polarization.
- Multiple Transmission/Reflection Ratios Available
- BBAR Coated Second Surface
- Fused Silica Substrate
| Angle of Incidence (°) | 45 |
|---|---|
| Clear Aperture (%) | >85 |
| Construction | Plate |
| Dimensional Tolerance (mm) | +0.0/-0.2 |
| Parallelism (arcmin) | <5 |
| Substrate | Fused Silica (Corning 7980) |
| Surface Flatness (P-V) | 1λ |
| Surface Quality | 60-40 |
| Thickness Tolerance (mm) | ±0.38 |
| Wavelength Range (nm) | 250 – 450 |
